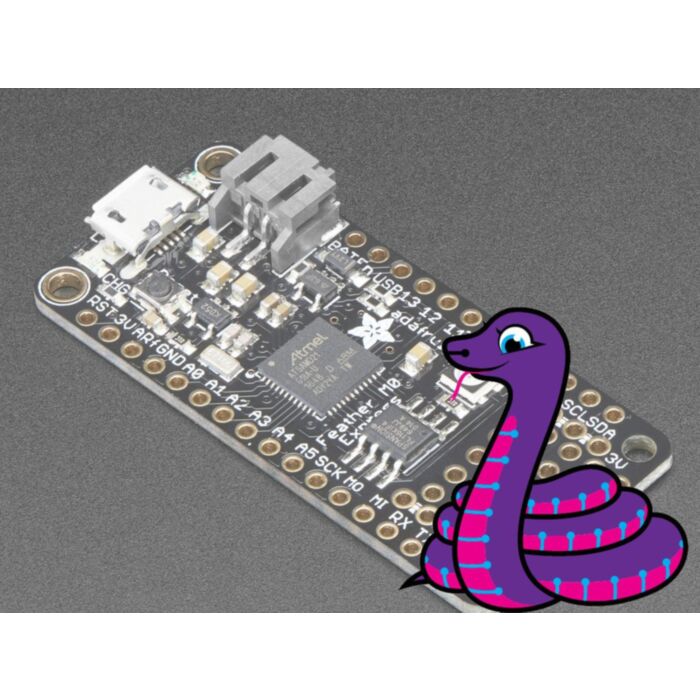

Adafruit Feather M0 Express - Designed for CircuitPython - ATSAMD21 Cortex M0

SKU: ADA3403

$33.24 AUD, inc GST
$30.22 AUD, exc GST
Adafruit Feather M0 Express - Designed for CircuitPython - ATSAMD21 Cortex M0
33.2388 AUD

SKU: ADA3403

$33.24 AUD, inc GST
$30.22 AUD, exc GST
In stock, with a short lead time. 117 units dispatch in 4 to 7 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Tue, 31st of Oct with Express Post within Australia.

Adafruit love all Adafruit's Feathers equally, but this Feather is very special. It's Adafruit's first Feather that is specifically designed for use with CircuitPython! CircuitPython is Adafruit's beginner-oriented flavor of MicroPython - and as the name hints at, its a small but full-featured version of the popular Python programming language specifically for use with circuitry and electronics.

Please note, CircuitPython is still in beta and Adafruit are working hard to make it awesome! Please pick up one of these Feather M0 Expresses if you want to try it out - maybe even help Adafruit find bugs and make improvements!

That doesn't mean you cant also use it with Arduino IDE! At the Feather M0's heart is an ATSAMD21G18 ARM Cortex M0+ processor, clocked at 48 MHz and at 3.3V logic, the same one used in the new Arduino Zero. This chip has a whopping 256K of FLASH (8x more than the Atmega328 or 32u4) and 32K of RAM (16x as much)! This chip comes with built in USB so it has USB-to-Serial program & debug capability built in with no need for an FTDI-like chip.

Here's some handy specs!

  • Measures 2.0" x 0.9" x 0.28" (51mm x 23mm x 8mm) without headers soldered in
  • Light as a (large?) feather - 5 grams
  • ATSAMD21G18 @ 48MHz with 3.3V logic/power
  • 256KB of FLASH + 32KB of RAM
  • No EEPROM
  • 32.768 KHz crystal for clock generation & RTC
  • 3.3V regulator with 500mA peak current output
  • USB native support, comes with USB bootloader and serial port debugging
  • You also get tons of pins - 20 GPIO pins
  • Hardware Serial, hardware I2C, hardware SPI support
  • PWM outputs on all pins
  • 6 x 12-bit analog inputs
  • 1 x 10-bit analog ouput (DAC)
  • Built in 100mA lipoly charger with charging status indicator LED
  • Pin #13 red LED for general purpose blinking
  • Power/enable pin
  • 4 mounting holes
  • Reset button

The Feather M0 Express uses the extra space left over to add a Mini NeoPixel2 MB SPI Flash storage and a little prototyping space. You can use the SPI Flash storage like a very tiny hard drive. When used in CircuitPython, the 2 MB flash acts as storage for all your scripts, libraries and files. When used in Arduino, you can read/write files to it, like a little datalogger or SD card, and then with Adafruit's helper program, access the files over USB.

Comes fully assembled and tested, with a USB bootloader that lets you quickly use it with the Arduino IDE or for loading CircuitPython. They also toss in some header so you can solder it in and plug into a solderless breadboard.

Lipoly battery and USB cable not included (but we do have lots of options in the shop if you'd like!)

Wanna get started with this fancy new Feather? Adafruit have a full guide with details on using it with both Arduino IDE and CircuitPython. The guide also has wiring information, drivers, Fritzing objects, schematics, datasheets and more!
