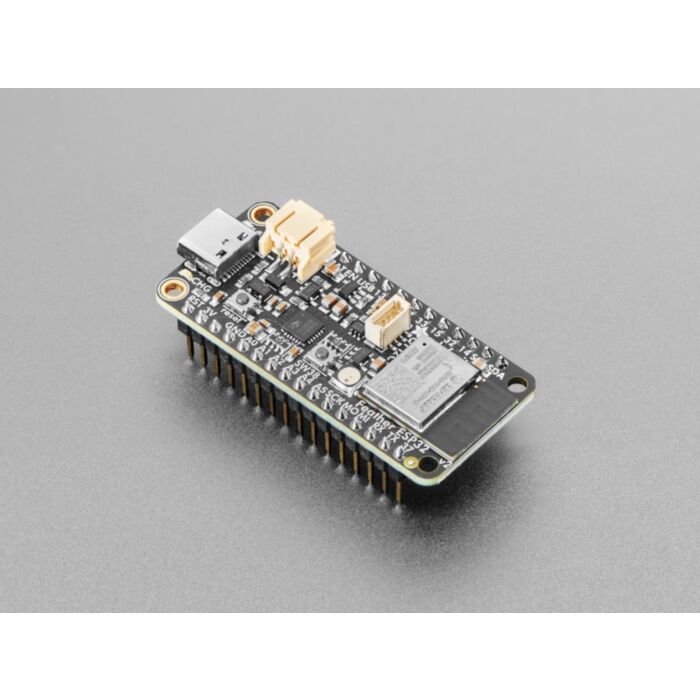

Adafruit ESP32 Feather V2 with Headers - 8MB Flash + 2 MB PSRAM - STEMMA QT

SKU: ADA5900 Brand: Adafruit
One of our star Feathers is the Adafruit HUZZAH32 ESP32 Feather. With the fabulous ESP32 WROOM module on there, it makes quick work of WiFi and Bluetooth...
$40.45 AUD, inc GST
$36.77 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 13 and Dec 17

Quantity Discounts:

  • 10-25 $35.30 (exc GST)
  • 25+ $34.20 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

One of Adafruit's star Feathers is the Adafruit HUZZAH32 ESP32 Feather. With the fabulous ESP32 WROOM module on there, it makes quick work of WiFi and Bluetooth projects that take advantage of Espressifs' most popular chipset. Recently, Adafruit had to redesign this feather to move from the obsolete CP2104 to the available CH9102F. One thing led to another, and before Adafruit knew it, we made a completely refreshed design: the Adafruit ESP32 Feather V2.

This version of the product has pin headers pre-soldered so you can use it instantly, but you cannot solder in stacking headers, for example.

The V2 is a significant redesign, enough so they consider it a completely new product. It still features the ESP32 chip but has many upgrades and improvements:

  • Compared to the original Feather with 4 MB Flash and no PSRAM, the V2 has 8 MB Flash and 2 MB PSRAM
  • Additional user button tactile switch on input pin 38
  • Additional NeoPixel mini RGB LED with controllable power pin
  • Additional STEMMA QT port for plug-and-play I2C connections
  • USB Type C port instead of Micro B
  • Separate controllable 3.3V power supply for STEMMA QT to allow for ultra-low power consumption even with sensors attached
  • Designed for low power usage: verified with a PPK to draw 70uA from the Lipoly battery in deep sleep and 1.2mA in light sleep.
  • ESP32 Pico module is much smaller, allowing for clear marking of all breakout pads and additional mounting holes!
  • Upgrade the USB to serial converter from CP2102 to CH9102F which is available for purchase! The CH9102F has no issues uploading at 921600 bps for speedy firmware loading.

However, in order to add the PSRAM, and use the new Pico module which was small enough to allow all the fun extras, some of the breakout pads have changed, so here's what you need to know:

  • The pin numbers for the I2C port (SDA, SCL), hardware UART (RX, TX), and SPI (SCK, MOSI, MISO) have changed. If your code has hardcoded use for those pins, you'll want to replace them either by the new numbers or change the code to use the 'pretty' names like SDA or SCK.The correct numbers will be substituted when selecting the new Feather ESP32 V2 board in the Espressif board support package.Note the names are in the same spots, Adafruit haven't changed where the I2C/UART/SPI pins are located on the board, just which ESP32 pin numbers they are connected to in the module.
  • The 'corner' pin next to TX has changed from pin 21 to 37. This pin is not used in any FeatherWings because its considered an 'extra pin'. It's also changed from a GPIO to input-only
  • The remaining numbered pins and A0-A5 pins have not changed pin numbers.

That module nestled at the end of this Feather contains a dual-core ESP32 chip, 8 MB of SPI Flash, 2 MB of PSRAM, a tuned PCB antenna, and all the passives you need to take advantage of this powerful new processor. The ESP32 has both WiFi and Bluetooth Classic/LE support, which means it's perfect for just about any wireless or Internet-connected project.

Because it's part of our Feather eco-system, you can take advantage of the 50+ Wings Adafruit have designed to add all sorts of cool accessories. Plus, that built-in battery charging and monitoring you know and love with the ESP32 Feather is still there in this upgrade.

    Features

    • ESP32 Dual core 240MHz Xtensa® processor - the classic dual-core ESP32 you know and love!
    • Mini module has FCC/CE certification and comes with 8 MByte of Flash and 2 MByte of PSRAM - you can have huge data buffers
    • Power options - USB type C or Lipoly battery
    • Built-in battery charging when powered over USB-C
    • LiPoly battery monitor with two 200K resistor dividers
    • Reset and User (I38) buttons to reset the board and as a separate input
    • High-speed upload with auto-reset and serial debug with ultra-reliable CP2102N chipset.
    • STEMMA QT connector for I2C devices, with switchable power, so you can go into low power mode.
    • Charge/User LEDs + status NeoPixel with pin-controlled power for low power usage
    • Low Power friendly! In deep sleep mode, Adafruit can get down to 80~100uA of current draw from the Lipoly connection. Quiescent current is from the power regulator, ESP32 chip, and Lipoly monitor. Turn off the NeoPixel and external I2C power for the lowest quiescent current draw.
    • Works with Arduino or MicroPython

    Comes fully assembled and tested with a USB interface that lets you quickly use it with the Arduino IDE or the low-level ESP32 IDF.

    This version of the board has also been pre-soldered, so you can plug it right into a solderless breadboard. Click here for the un-soldered version. Lipoly battery and USB cable not included (but we do have lots of options in the shop if you'd like!)

    Technical Details

    Here are specifications from Espressif about the ESP32:

    • 240 MHz dual core Tensilica LX6 microcontroller with 600 DMIPS
    • Integrated 520 KB SRAM
    • Integrated 802.11b/g/n HT40 Wi-Fi transceiver, baseband, stack and LWIP
    • Integrated dual mode Bluetooth (classic and BLE)
    • On-board PCB antenna
    • Ultra-low noise analog amplifier
    • Hall sensor
    • 10x capacitive touch interface
    • 32 kHz crystal oscillator
    • 3 x UARTs (only two are configured by default in the Feather Arduino IDE support, one UART is used for bootloading/debug)
    • 3 x SPI (only one is configured by default in the Feather Arduino IDE support)
    • 2 x I2C (only one is configured by default in the Feather Arduino IDE support)
    • 12 x ADC input channels
    • 2 x I2S Audio
    • 2 x DAC
    • PWM/timer input/output available on every GPIO pin
    • OpenOCD debug interface with 32 kB TRAX buffer
    • SDIO controller or peripheral 50 MHz
    • SD-card interface support
