Adafruit 2.23 Monochrome OLED Bonnet for Raspberry Pi

Rating:

100% of 100

SKU: ADA4567 Brand: Adafruit

If you're looking for a bright, readable OLED display for a Raspberry Pi (most likely a Pi Zero) project, this might be just the thing you need!

$47.20 AUD, inc GST

$42.91 AUD, exc GST

Available with a lead time
Expect dispatch between May 10 and May 13

Quantity Discounts:

10-25 $41.19 (exc GST)
25+ $39.91 (exc GST)

If you're looking for a bright, readable OLED display for a Raspberry Pi (most likely a Pi Zero) project, this might be just the thing you need!

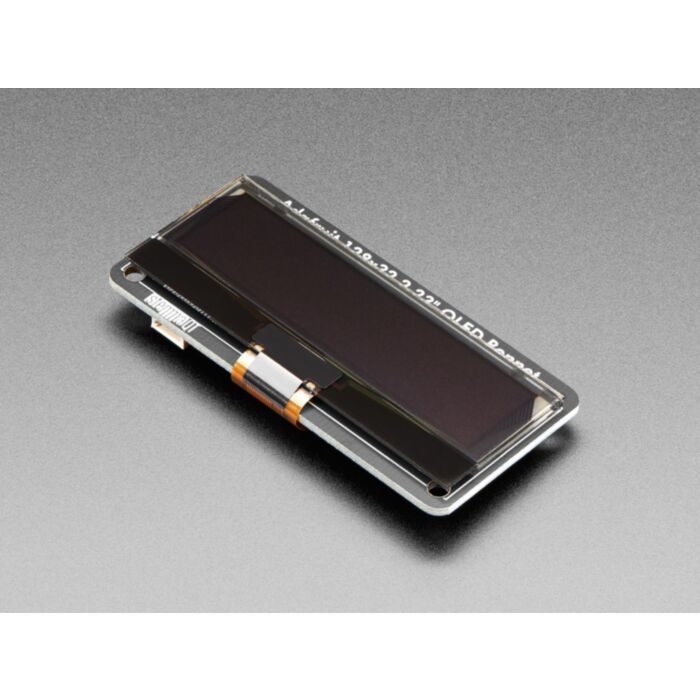

The Adafruit 2.23" Monochrome OLED Bonnet for Raspberry Pi is your chonky OLED pal, ready to snap onto any and all Raspberry Pi computers, to give you a vivid display. The Bonnet comes with a 2.13" diagonal monochrome 128x32 OLED, with sharp white pixels. The OLED the I2C pins plus GPIO #4 for reset, so you have plenty of GPIO connections available for buttons, LEDs, sensors, etc. It sits nice and flat so many cases that have an open top can have this display inserted.

Compared to Adafruit's similar PiOLED display, this OLED has the same resolution but is much larger, so it can be read from across the room. This screen is made of 128x32 individual white OLED pixels and because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast; Adafruit really like OLED display for their crispness!

Using the display is very easy, Adafruit have a Python library for the SSD1305 chipset. Adafruit's example code allows you to draw images, text, whatever you like, using the Python imaging library. Adafruit's tests showed 30 FPS update rates so you can do animations or simple video.

Comes completely pre-assembled and tested so you don't need to do anything but plug it in and install Adafruit's Python code! Works with any Raspberry Pi computer that has a 2x20 connector, such as the Pi B+, Pi 2, Pi 3, Pi 4, and Pi Zero (and any others that have a 2x20 connector!)

On the bottom, Adafruit have a Qwiic/STEMMA QT connector for I2C sensors and devices so you can plug and play any of Adafruit's STEMMA QT devices.

Please note that OLED displays are made of hundreds of...OLEDs! That means each pixel is a little organic LED, and if it's kept on for over 1000 hours it'll start to dim. If you want to keep the display uniformly bright, please turn off the display (set the pixels off) when it isn't needed to keep them from dimming.

Check out the GitHub repo for Adafruit's Python library that has examples and instructions
