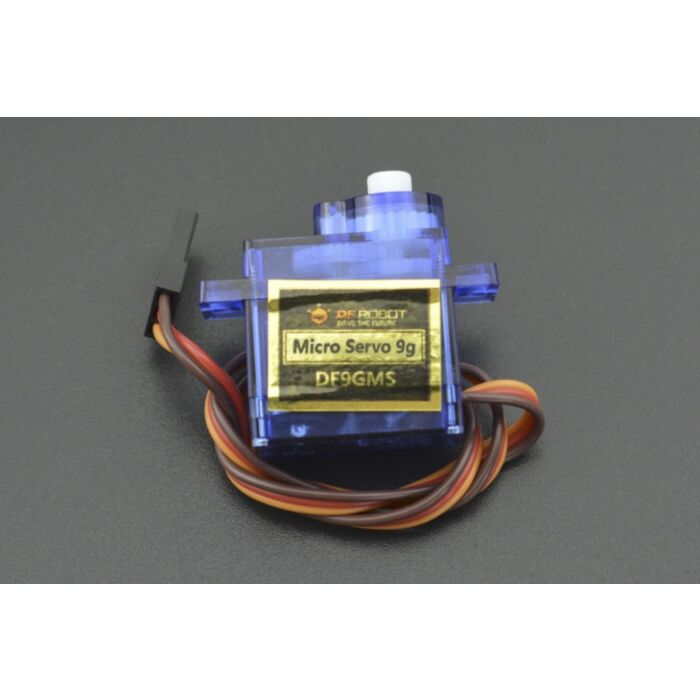

This is the most mini servo. Only weights 9 gram and gives you a 1.6kg.cm torque. Pretty strong regarding its size. Suitable for Beam type robot.
- No load speed: 0.12 seconds / 60 degrees (4.8V)
- Stall Torque: 1.6 kg / cm (4.8V)
- Operating temperature: -30 ~ +60 degrees Celsius
- Dead Set: 7 microseconds
- Operating voltage: 4.8V-6V
- Working rurrent: less than 500mA
- Cable length: 180mm
- Size: 22mmx12.5mmx29.5mm
- Weight: 9 grams
