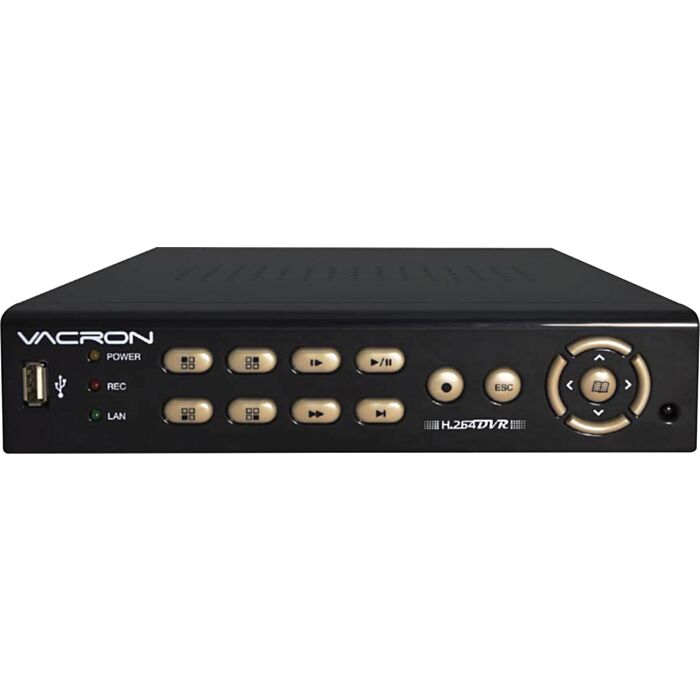

8 Ch. Hybrid 960H Analog IP Digital Video Recorder (DVR)

This 8 channel digital video recorder is designed to support connection to both analog and IP cameras. A high compression H.264 algorithm ensures you get the most from your hard drive space. For backup and archiving a USB flash drive may be plugged into the front panel. Footage can be viewed remotely over internet or on mobile devices (apps to suit iOS & Android).

Features

• H.264 compression
• 12fps recording @ 960H, real time 25fps @ D1 res. (per ch.)
• Pentaplex functionality - simultaneous recording, playback, network & mobile viewing
• 4 audio inputs
• HDMI output
• Multiple motion detection areas
• Independent channel settings for fps, resolution, contrast, brightness
• Multi-channel alarm triggering
• RS485 PTZ control
• USB backup
• Mouse & remote control
• Max 4TB hard drive.

Recording options:
Each Channel can individual setup for 960H/D1/HD1/CIF

NOTE:
WE ARE UNABLE TO PROVIDE DETAILED TECHNICAL SUPPORT FOR THIS PRODUCT AS INSTALLATIONS VARY GREATLY IN CONFIGURATION. WE RECOMMEND OUR DVR'S BE INSTALLED BY A SECURITY PROFESSIONAL AS INSTALLATION CAN BE A COMPLEX PROCESS REQUIRING TECHNICAL KNOWLEDGE.

Specifications

• Video
• Input:
• - BNC, 8CH Input / BNC(1Vp-p 75Ω)
• Output:
• - VGA Resolution: Yes
• - High Definition(HD): Yes
• - CVBS( BNC): 1CH Output / BNC
• Audio
• Input: 4CH Input( W/ 2-Way Audio)
• Output: 1CH Output
• Audio Compression: G.711A
• Alarm
• Sensor Input: 4CH Input, Normal Open/ Close (Option)
• Alarm Output : 1CH Output(Option)
• Display
• Resolution: 960H
• Digital Zoom: Area selected by mouse dragging
• Auto Sequence Duration: 5-120 sec
• Recording
• Video Compression: H.264
• Resolution: Each Channel can individual setup for 960H/D1/HD1/CIF
• Frame:
• - 8CH 960H @14FPS/CH(NTSC)；8CH 960H @12FPS/CH (PAL)
• - 8CH D1 @30FPS/CH(NTSC)；8CH D1 @25FPS/CH (PAL)
• Recoding Quality: Lowest, Low, Normal, Good, High, Highest
• Recording Mode: Continuous/ Schedule/ Motion/ Alarm/ Manual
• Motion Detection: Zones: 192(16×12 grid)
• Pre-Record: 1-30 sec
• Post-Recording: 10 ~ 300 sec
• Display Mode
• Single, Quad, 8-Split, 9-Split, Sequence
• Backup
• File Format: AVI / use defined format
• Media Interface: USB/Network
• Player Software Automatic backup: YES
• Network

• Dual Stream: 960H/D1/HD1/CIF / QCIF
• Playback: YES
• Communication Protocol:
• - HTTP、DHCP、DDNS、NTP、SMTP、FTP、DNS, UPNP、PPPoE、
• IP Authorization、IP Search
• Browser: IE、Chrome、Firefox、Safari
• HDD Storage
• Interface: SATA
• Maximum support capacity: 4TB
• Internal space: 1 x HDD
• Mirror: No
• External USB: The port of USB storage device provides simultaneous recording
• File System: Stable and reliable self-developed file system
• S.M.A.R.T: HDD error detecting
• User Interface
• Menu Display: GUI interface；VGA & CVBS & HD out simultaneously
• Input Method: Front Panel/Remote Controler/ Mouse
• Serial Interface
• PTZ & Controller: Pelco-D / Pelco-P ( RS-485)
• Network
• Ethernet: 1*RJ-45, 10/100 Base-T
• Web Monitoring: Live, Search/Playback, Backup, PTZ, Remote Setup/Upgrade
• Features
• Daylight Saving Time (DST): Yes
• Internal Buzzer: Motion、Alarm、Video Loss、HDD Error
• Multi Language: Yes (more than 20 languages)
• Firmware Update: USB, Network Remote Upgrade
• Network Time Protocol (NTP): Yes
• 3G Mobile Phone:
• iPhone, Android Mobile App supports Live video & audio, and playback.
• Central Management Software(CMS): Yes
• Hybrid( Digital & Analogue): Yes
• General
• Operating Environment: Temperature 0~46ºC, Humidity: 20~80%
• Power: DC 12V / 2A(AC100V~240V 50/60HZ)
• Weight: About 1.6kg ( without HDD and Power Adapter)
• Dimension: 220mm x 288mm x 48mm (W x D x H)
