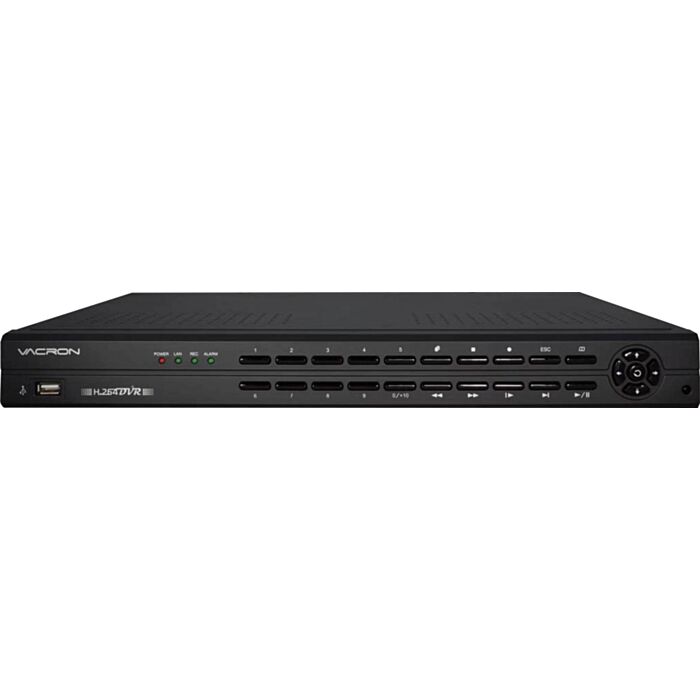

8 Ch. Hybrid 960H Analog IP Digital Video Recorder (DVR)

SKU: AS9346H

Retired Product

Search for an alternative
This product has been retired. It is no longer available, but this page has been kept for reference.
This 8 channel digital video recorder is designed to support connection to both analog and IP cameras. These systems also feature 960H real time (25fps) recording on all channels. Monitor connection is available via HDMI, VGA or composite video.
Footage archiving and backup is available via USB connection.
It can be fitted with two hard drives up to a maximum capacity of 4TB each, with the option of connection to external drives via USB.
Online viewing of live and recorded footage is available on IE, Firefox, Safari and Chrome web browsers. Plus on iOS and Android powered mobile devices. PTZ control of cameras is also available during online viewing sessions.
Individual channels can be tailored to suit the installation with settings such as brightness, contrast, saturation, hue & gain, all fully adjustable. Motion detecting areas can be easily set up for all channels. Recording can be triggered via external contacts such as alarms, infra red sensors etc. or alternatively scheduled recording or full time recording is available. Includes power supply. Hard drives sold separately.

Features

  • 960H real time 25fps recording on all channels
  • Hybrid IP/Analog recording
  • H.264 compression
  • Real-time live display
  • Mobile monitoring via iPhone, Android etc
  • Dual hard disk bays
  • Includes IR remote control and mouse
  • VGA, HDMI and CVBS monitor output
  • Audio inputs and outputs via RCA
  • Adjustable frame rate and quality
  • Adjustable motion detection on all channels
  • User friendly video file management
  • Full HD video output
  • Software included for remote access & footage playback
  • PTZ control
  • Pre-alarm recording
  • USB file backup
  • Key lock password
  • Video loss detection


NOTE:
WE ARE UNABLE TO PROVIDE DETAILED TECHNICAL SUPPORT FOR THIS PRODUCT AS INSTALLATIONS VARY GREATLY IN CONFIGURATION. WE RECOMMEND OUR DVR'S BE INSTALLED BY A SECURITY PROFESSIONAL AS INSTALLATION CAN BE A COMPLEX PROCESS REQUIRING TECHNICAL KNOWLEDGE.

Specifications

  • Video System: PAL
  • Video Compression: H.264
  • Video Input: 1Vp-p 75Ω BNC
  • Video Output: BNC, VGA, HDMI
  • Audio Inputs: 1 per channel (RCA)
  • Audio Outputs: 1 (RCA)
  • HDD Bays: 2 x SATA II
  • Record Modes: Manual, Timer, Motion, Alarm & Remote
  • Multiplex Operation: Live, Record, Playback, Backup & Network Transfer
  • PTZ Control: Yes
  • Alarm Outputs: 1
  • Alarm Inputs: 1 per channel
  • Backup: USB 2.0, Network
  • Motion Detect: 16x12 grids per channel
  • Motion Sensing: 3 adjustable parameters
  • Video Settings: Hue, Saturation, Contrast, Brightness
  • Ethernet: 10/100
  • Protocols: TCP/IP, PPPOE, DHCP, DDNS, UPnP
  • Event Notify: FTP, Email, Smartphone App
  • Operating System: Windows & Mac OS X
  • App OS: iOS, Android
  • Power: 12V dc @ 5A.
  • Size (mm): 430Wx314Dx53H
