5303 Series Saturn Planetary Gear Motor (139:1 Ratio, 24mm Length 8mm REX Shaft, 130 RPM, 3.3 - 5V Encoder)

SKU: GB-5303-2402-0139 Brand: goBilda
This 139:1 ratio 5303 Series Saturn Planetary Gear Motor consists of a 24V brushed DC motor driving a 36mm diameter planetary gearbox. It.....
$179.95 AUD, inc GST
$163.59 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 30th of Apr

Quantity Discounts:

  • 10-25 $155.41 (exc GST)
  • 25+ $147.24 (exc GST)
- +

1 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

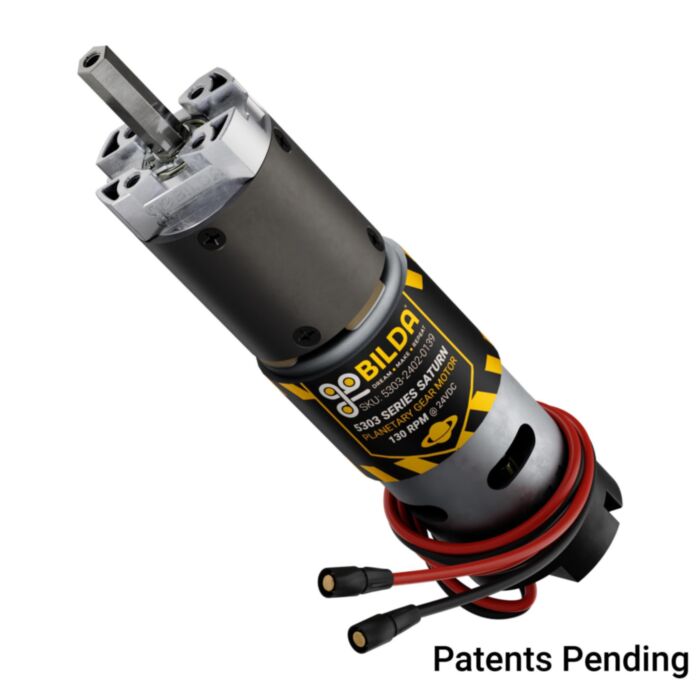

This 139:1 ratio 5303 Series Saturn Planetary Gear Motor consists of a 24V brushed DC motor driving a 36mm diameter planetary gearbox. It runs at a no-load speed of 130 RPM when 24VDC is applied. While this motor’s nominal voltage is 24V, you can give it plenty of punch with the ever-convenient 20V power tool battery system!

The positive drive 8mm REX™ shaft has compatibility with a huge variety of goBILDA® motion components. Additionally, this motor’s specially-designed gearbox head allows for direct attachment to goBILDA® components in numerous use-cases made possible by its convenient shape.

The two power wires provide plug-and-play compatibility with goBILDA® motor controllers via 3.5 bullet connectors. You don’t need to use the encoder during normal operation, but you can tap into it with a JST XH plug to bring position and velocity control to your project.

??WARNING: Stalling this motor may cause irreparable damage!This motor is extremely high-power. Use extreme caution when using it in applications with hard limits, such as linear slides and rotating arms.

Downloads

Specs

Motor Size RS-560
Motor Type Brushed DC
Nominal Voltage 24VDC
Output Shaft 8mm REX™, 23.5mm Length
Gearbox Style Planetary
Nominal Gear Ratio 139:1
Gear Ratio Formula (1+(46/11)) * (1+(46/11)) * (1+(46/11))
Gear Material Steel
Wire Length 470mm (including connectors)
Wire Gauge 18AWG
Motor Connector Type 3.5mm FH-MC Bullet Connectors
No-Load Speed

70 RPM @ 12VDC
120 RPM @ 20VDC
130 RPM @ 24VDC

No-Load Current

0.8A @ 12VDC
1A @ 20VDC
1.3A @ 24VDC

Stall Torque

3900 oz-in (281 kg.cm) @ 12VDC
5320 oz-in (383 kg.cm) @ 20VDC
6739 oz-in (485 kg.cm) @ 24VDC

Stall Current

30A @ 12VDC
45A @ 20VDC
60A @ 24VDC

Maximum Duty-Cycle at Rated Torque 25% on, 75% off (Maximum 15 minutes Continuous)
Rated Torque

701 oz-in (50.5 kg.cm) @ 12VDC
960 oz-in (68.8 kg.cm) @ 20VDC
1211 oz-in (87.2 kg.cm) @ 24VDC

Speed at Rated Torque

57 RPM @ 12VDC
98 RPM @ 20VDC
107 RPM @ 24VDC

Current Draw at Rated Torque

6A @ 12VDC
8A @ 20VDC
11A @ 24VDC

Encoder Type Relative, Quadrature
Encoder Sensor Type Magnetic (Hall Effect)
Encoder Voltage Range 3.3-5VDC
Encoder Resolution 3895.9 PPR at the Output Shaft
Encoder Resolution Formula (1+(46/11)) * (1+(46/11)) * (1+(46/11)) * 28
Encoder Connector Type 4-Pos JST XH [FH-MC]
Weight 544g
IP Patented
