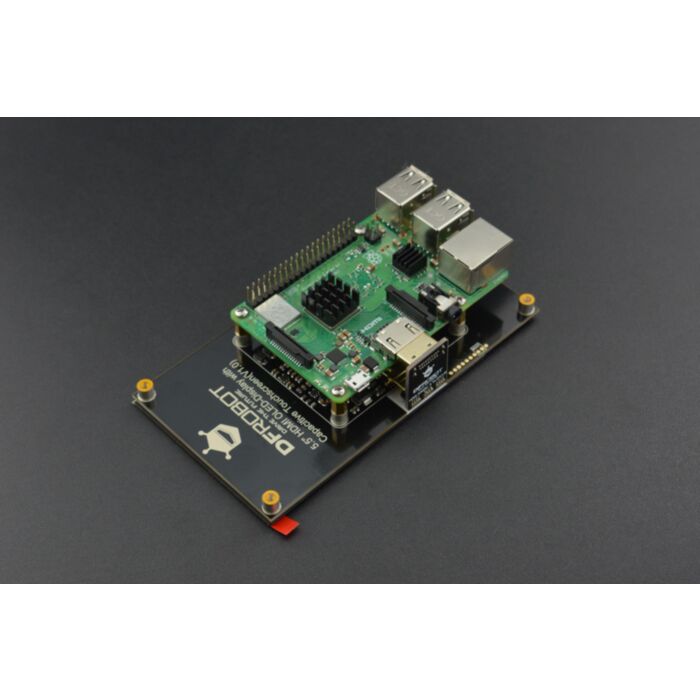

5.5 1920x1080 mini-HDMI OLED Display with Capacitive Touchscreen

SKU: DFR0524 Brand: DFRobot

This is a 5.5" mini-HDMI OLED-Display with Capacitive Touchscreen. It has 1920×1080 HDMI high-definition output and comes with a capacitive touch panel on its screen...

$249.95 AUD, inc GST

$227.23 AUD, exc GST

Available with a lead time
Expect dispatch between May 05 and May 08

Quantity Discounts:

5+ $218.14 (exc GST)
10+ $211.32 (exc GST)

This is a 5.5" mini-HDMI OLED-Display with Capacitive Touchscreen. It has 1920×1080 HDMI high-definition output and comes with a capacitive touch panel on its screen. The touch panel supports multi-touch which can simultaneously identify 5 touch points at most. Besides, the USB touchscreen adopts DFRobot driver-free technology. So without the special requirement of installing drivers, the touchscreen can be used as easy as a keyboard or a mouse. It can be directly plugged into a computer for touching control, which is able to replace the mouse. The display turns your device into a tablet PC in seconds!

The screen supports three mainstream operating systems: Windows, Linux, and MACOS. It can work with Lattepanda, Raspberry Pi and other devices with HDMI output, which can truly be totally compatible with all platforms. The design of the special hole on the back of the screen is convenient for the direct installation of the product in Raspberry PI's controller. There is no need to provide an external power supply for the screen as it can be powered by USB port. In addition, the display supports hardware backlight adjustment. The function can be easily realized by turning the potentiometer on the back of the display.

Features

Capacitive Touchscreen, Support 5 Touch Points
Mini-HDMI Interface
USB Power Supply, Driver-free Installation

Specification

Operating Voltage: 5V
Operating Current: 700mA
Refresh Frequency: 60Hz
Screen Resolution: 1920 x 1080
Visible Angle: 160°
Video Interface: MINI-HDMI
Touch Interface: Micro-USB
Dimension: 130mm x 71mm
Mounting Hole Size: M2.5
Outside Mounting Hole Position: 123mm x 64mm
Inside Mounting Hole Position: 58mm x 49mm
Weight :150g

Parts List

1x 5.5" 1920x1080 mini-HDMI OLED Display with Capacitive Touchscreen
1x Screws & hexagonal standoffs package
1x Mini-HDMI to HDMI Converter
