4x4 Matrix Keypad

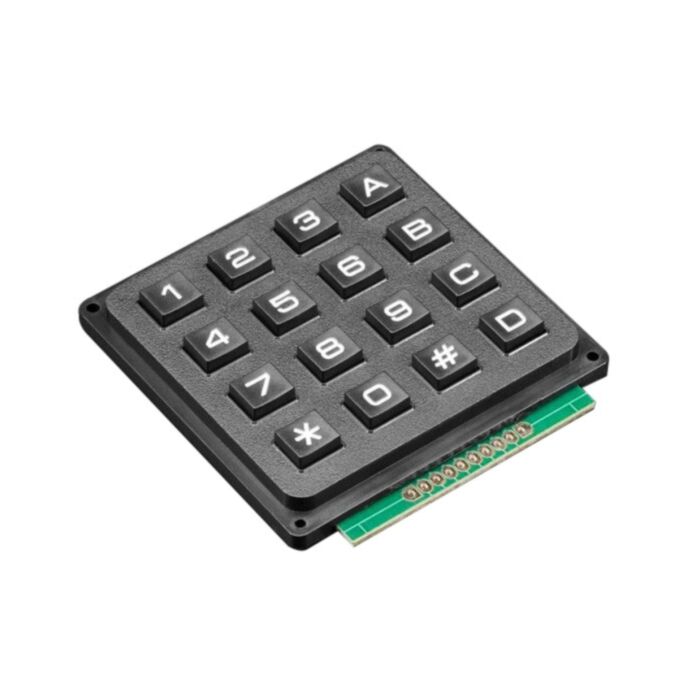

Punch in your secret key into this numeric matrix keypad. This keypad has 16 buttons, arranged in a telephone-line 4x4 grid. The keys are connected into a matrix, so you only need 8 microcontroller pins (4-columns and 4-rows) to scan through the pad. Check the tutorials tab for links to an Arduino library and example code.Adafruit include some header so you can plug this into a breadboard with ease, some light soldering is required to attach it. Or you can use plain wires if you like.

There's a great Matrix Keypad Arduino library that should work great with this item with minor adjustments. It's basically a sturdier version of Adafruit's Membrane 3x4 Matrix Keypad. Starting from the left there are four row pins, and then to the right are the four column pins.

If you dig Adafruit's demo, check out the Adafruit FeatherWing OLED - 128x32 OLED

We also have a 3x4 version of this matrix keypad

Technical Details

• Force: 160-180g
• Contact Resistance: <100&

There is a very nice Matrix Keypad Arduino library that works great with this item. The only thing we suggest is to change the initialization code in the examples to this, which matches the demo above

#include "Arduino.h"
#include "Keypad.h"

const byte ROWS = 4; //four rows
const byte COLS = 4; //four columns

char keys[ROWS][COLS] = { {'1','2','3','A'}, {'4','5','6','B'}, {'7','8','9','C'}, {'*','0','#','D'} };
byte rowPins[ROWS] = {A3, A2, A1, A0}; //connect to the row pinouts of the keypad - four in a row
byte colPins[COLS] = {MOSI, SCK, A5, A4}; //connect to the column pinouts of the keypad - four in a row
Keypad keypad = Keypad( makeKeymap(keys), rowPins, colPins, ROWS, COLS );


void setup() {

     Serial.begin(9600);
}


void loop() {
     char key = keypad.getKey();

     if (key != NO_KEY){
          Serial.println(key);
     }

}

Product Dimensions: 69.0mm x 65.5mm x 9.7mm / 2.7" x 2.6" x 0.4"

Product Weight: 21.2g / 0.7oz
