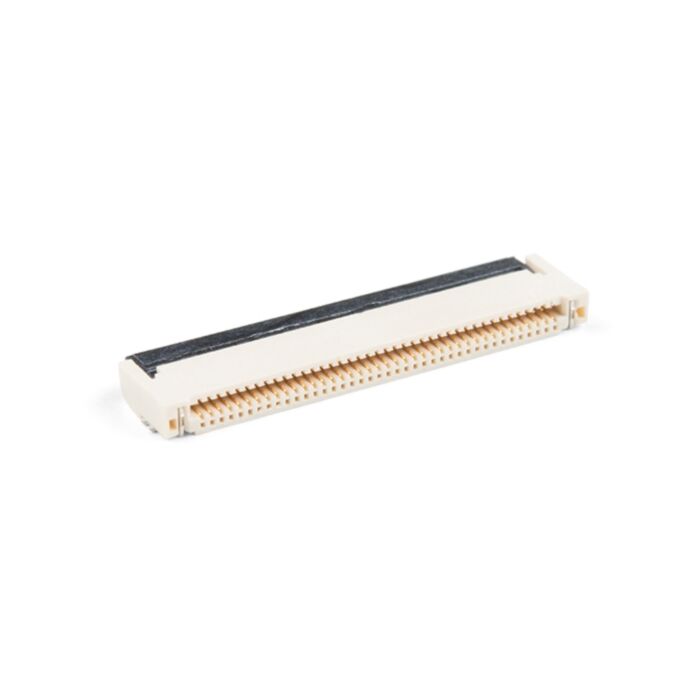

40 Pin 0.5mm FPC, SMD, Both Sides

SKU: PRT-15095 Brand: Sparkfun

This is a 40-pin surface mount FPC (Flat Printed Circuit) connector...

$1.20 AUD, inc GST

$1.09 AUD, exc GST

Available with a lead time
Expect dispatch between May 13 and May 16

Quantity Discounts:

10+ $1.05 (exc GST)
25+ $1.04 (exc GST)

This is a 40-pin surface mount FPC (Flat Printed Circuit) connector. Nothing too fancy here, except that it can be plugged in either way - contacts up or down. This is useful for manufacturers because they only have to keep one item in stock. It is useful for consumers because they can use one connector to fit in multiple orientations.

This product fits the 1.77 TFT LCD Display 160x128 RGB - 3 Wire and thanks to its dual-sided nature you can use it upside down or all-around.

TFT Display Not Included This product mates and is pictured with the 1.8in. TFT LCD 160x128 RGB

40 pins
0.5mm pitch
Top/bottom side contacts (both)
Locking

Drawing
