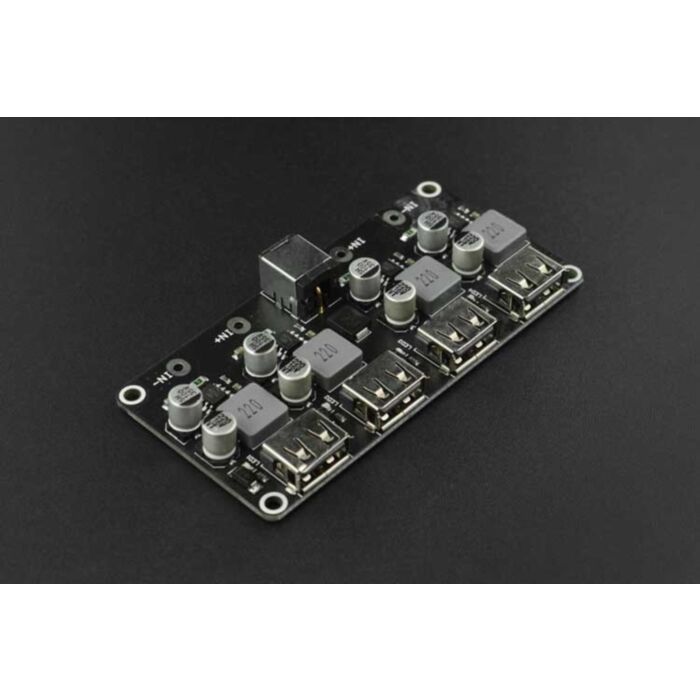

4-way Fast Charge Buck Module (Compatible with Raspberry Pi 4B & Jetson Nano)

SKU: DFR0852 Brand: DFRobot

This 4 USB buck fast-charging module integrates the common 5V charging recognition function, which is compatible with 99% of the mobile phones on the market. Compared...

$13.95 AUD, inc GST

$12.68 AUD, exc GST

Available with a lead time
Expect dispatch between May 14 and May 20

Quantity Discounts:

10-25 $12.30 (exc GST)
25+ $12.05 (exc GST)

This 4 USB buck fast-charging module integrates the common 5V charging recognition function, which is compatible with 99% of the mobile phones on the market. Compared with products without charging recognition function, this module can save a lot of charging time by triggering the peak current via fast charging protocol. It features 6~32V input and 3~12V output(default 5V). The voltage can be changed through fast-charging decoy. Multiple fast-charging protocols are supported and all 4 channels work independently.

With steady output, this Fast Charge Module is able to work for a long time without voltage shift. It can be suitable for projects like mobile phone fast charging, Car charging retrofit, solar charger, DIY power source, etc.

Features

4 USB output
Support multiple fast-charging protocols
Can be used as charger and power supply

Specification

Input Voltage Range: 6V-32V via 2.1mm barrel jack (centre-positive)
Output Voltage: 3-12V, automatically adjust according to the fast-charge protocol (the default output is 5V, input should be 2V higher than output)
Output Current: 0-3A
Output power: ≤24W ([email protected], [email protected], 12V@2A, etc.)
Chip Protection: input over-voltage, under-voltage protection, input over-current protection, output over-current, short-circuit protection, over-temperature of the whole machine protection
Fast-charging Protocols supported:
DCP protocol, BC1.2, Apple, Samsung protocol

Huawei fast-charging protocol FCP/SCP, AFC

Spreadtrum fast-charging protocol SFCP

Qualcomm QC2.0 and 3.0

MTKPE1.1/PE2.0

Shipping List

4-way Fast Charge Buck Module x1
