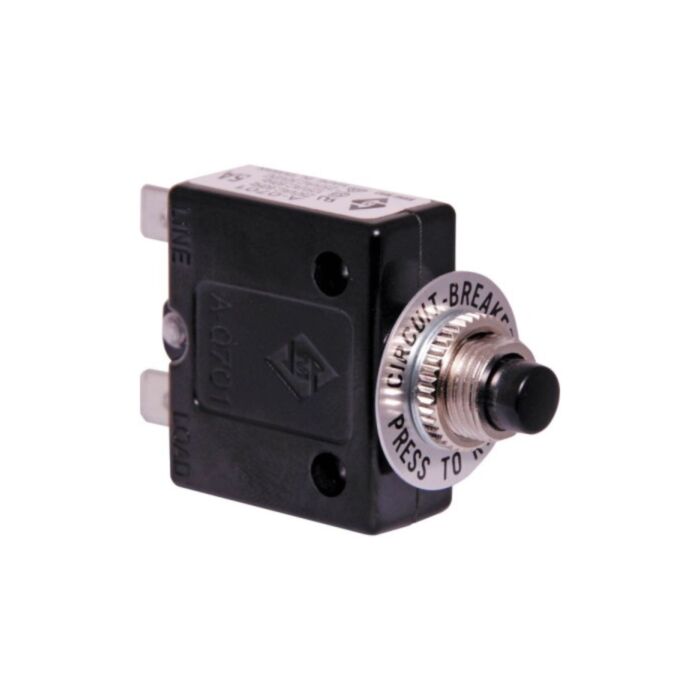

3A Panel Mount Circuit Breaker (Resettable fuse)

This 3A panel mount push button single pole circuit breaker uses a snap acting bimetal element to sense current overload.

$10.30 AUD, inc GST

$9.36 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 27 and Dec 30

Quantity Discounts:

10-25 $8.99 (exc GST)
25+ $8.71 (exc GST)

This 3A panel mount push button single pole circuit breaker uses a snap-acting bimetal element to sense current overload. As the bimetal snaps through in response to an overload, it opens the electrical contacts and allows the reset button to pop out. The circuit remains disconnected until someone pushes the reset button, closing the contacts and re-energizing the circuit. Designed for protection of industrial circuitry up to 250V AC or 50V DC voltages. Requires a 12mm mounting hole.18mm label plate.

Features

UL, CSA, VDE approved
RoHS approved
Rating at 250V AC or 50V DC
Black plastic actuator button
Supplied with all mounting hardware
Quick connect 6.3mm terminals
Includes ID plate and all hardware needed to panel-mount

Trip Time Information
100% - No trip
165% - Trip in 1hr.
200% - 4 to 40s
300% - 2.5 to 11s
400% - 1.2 to 8s
500% - 1.0 to 5s
600% - 0.6 to 2s

This product is listed in:

Components & Parts>Fuses
