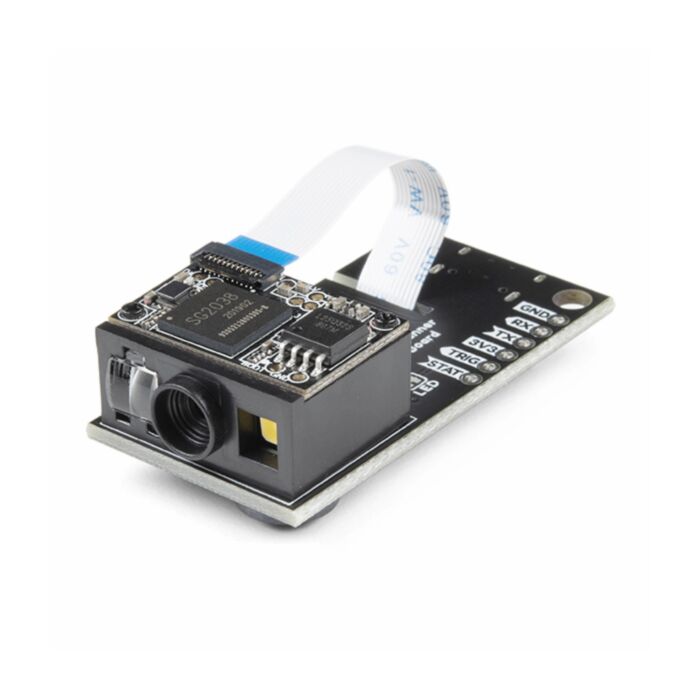

2D Barcode Scanner Breakout

SKU: SPX-16441 Brand: Sparkfun

Retired Product

Search for an alternative
This product has been retired. It is no longer available, but this page has been kept for reference.

The DYScan DE2120 is one of the coolest little barcode scanners we've ever seen. This tiny "scan engine" will read 20 different barcode symbologies — both 1D and 2D! This is achieved by using a camera coupled with on-board image processing to identify and decode everything from UPC codes to QR codes. The module also features two LEDs: one for illumination and one to project the red line that you're used to seeing from laser-based scanners.

This breakout board makes it easy to explore all of the capabilities of the DE2120 without dealing with finicky flat flex cables. The scanner's USB interface is exposed via the on-board USB-C connector. A buzzer and status LED are connected to the module through appropriate drive circuits and a pushbutton tactile switch is provided on the "trigger" pin. When you're ready to incorporate the module into your embedded project, you can leverage the 5 pin header for direct access to the TTL serial pins, power pins, and trigger input.

The module can be configured either by using the serial interface or by scanning command barcodes found in the datasheet.

This is the beauty of SparkX! We released the first version of the barcode scanner breakout just a few weeks ago. This version improves upon it by reducing the component count and slimming down the board while maintaining all the functionality. All keyboard, HID, and serial can be transmitted over the single USB C connector. The DE2120 has the unique ability to enumerate as all three protocols including a CDC serial driver so the device appears as a standard COM port. For this reason, we removed the CH340 serial converter and second USB C connector from the design. To configure the module please see the configuration manual.

Experimental Product: SparkX products are rapidly produced to bring you the most cutting edge technology as it becomes available. These products are tested but come with no guarantees. Live technical support is not available for SparkX products. Head on over to our forum for support or to ask a question.

Features

  • USB-C Connector for USB HID Interface and Virtual COM port
  • Reads 20 different symbologies
    • 1D Symbologies
      • UPC-A
      • UPC-E
      • EAN-8
      • EAN-13
      • Code 128
      • GS1-128
      • Code 39
      • Code 93
      • Code 11
      • Interleaved 2-of-5
      • Matrix 2-of-5
      • Industrial 2-of-5
      • Codabar
      • MSI
      • GS1 DataBar
      • Datalogic 2-of-5
    • 2D Symbologies
      • QR Code
      • Data Matrix
      • PDF 417
      • Micro PDF 417
      • Aztec Code
