24GHz mmWave Sensor - Human Static Presence Module Lite

SKU: SS101991030 Brand: Seeed Studio

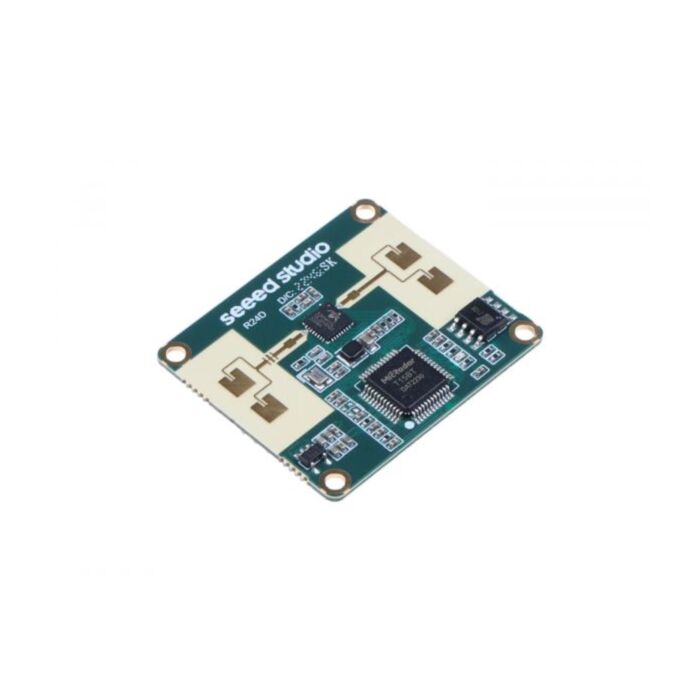

24GHz mmWave Sensor - Human Static Presence Module Lite is an antenna-integrated, high-sensitivity mmwave radar sensor that is based on the FMCW...

$14.70 AUD, inc GST

$13.36 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 3rd of Sep

Quantity Discounts:

10-25 $12.83 (exc GST)
25+ $12.43 (exc GST)

Restrictions apply to this RF Equipment for use in Australia:

Only to be operated on 433Mhz / 915-930Mhz / 2.4Ghz (check the product description for compatible frequency ranges).
If operating outside of shared frequencies or in such a way that is beyond low interference potential devices are intended to function, then you have obtained the appropriate authorisation to do so.

For use in other locations around the world:

Follow region-specific frequency spectrum rules.

A declaration of use will need to be submitted during checkout.

24GHz mmWave Sensor - Human Static Presence Module Lite is an antenna-integrated, high-sensitivity mmwave radar sensor that is based on the FMCW principle. It is user-friendly by providing visual debugging and configuration tools. It can flexibly adapt to various scenarios as multiple underlying parameters is configurable. With Arduino support, it is an easy-to-use and cost-effective choice for various human presence-detecting applications.

Features

Based on the FMCW principle: highly sensitive and immune to environmental interferences
Visual debugging and configuration tools: straightforward and simple to use while keeping the data clearly presented
More parameter modulation options: multiple configurable underlying parameter settings to meet the different needs in various scenarios
Compatible with Arduino Library: adopts UART and provides Arduino library support
Home Assistant Ready: wiki to walk you through how to integrate it with Home Assistant

This radar assembles multiple functions in one device which are customizable with your own definitions.

It can detect human presence, the motion and the direction of motion, object speed, and detected distance. Meanwhile, it provides the open custom function by offering adjustable underlying parameters for you to adjust detected range, sensing sensitivity, trigger threshold, valid time for states changing, and installation environment.

There is also an underlying open function provided and the parameters from it are the statics noise of the environment, the detection range of presence, motion noise of the environment, the detection range of object moving, and the detection speed of an object moving. That is, you can utilize its performance to build your own object movement detection radars, to meet the different needs in various scenarios.

Most Amazing Part: Visual debugging and configuration tools

The hardware design of it is scalable and supports secondary development based on related upper computer software(Windows) and Arduino. It can be even amazed that the radar can be upgraded by OTA(over-the-air) programming method as the board can be upgraded locally. Combined with its multiple customizable functions, this radar is an ideal motion-sensing solution in times of devices getting smarter. It presents a range of functional configurations that can be developed for realizing various application requirements.

Upper Computer Software

There is an upper computer software related to this radar, published for real-time acquisition and visualization of radar data, that displays sensing parameters through real-time waveform images which makes data monitoring more intuitive and clear. Meanwhile, it offers a series of actionable items generated by serial command protocols. Both of them help to increase development efficiency.

Applications

Automatically outdoor lighting
Automaed door opening
Whole house monitor
Intelligent home appliances (TV, bath bully, security, etc.)
Office energy (air conditioning, lighting)
Sleep monitoring curve
Home security
IPC trigger

Specification

Basic Information

Contents	Minimum	Typical	Maximum	Unit
Operating voltage (VCC)	4.5	5.0	6	V
Operating current (ICC)	95	110	120	mA
Operating I\O Input/output current(IIO)	-	8	20	mA
Operating temperature	-20	-	+85	?
Storage temperature	-40	-	+85	?
Buad Rate		115200

Detect Angle and Range

Contents	Minimum	Typical(default)	Maximum	unit	Installation
Motion detection range	-	5	5	meter	slide mount
Stationary/micro movements detection range	-	4	4	meter	slide mount
Detection range in the case of sleep	-	3	3.5	meter	slide mount
Radar detection angle (horizontal)	-	90		degree
Radar detection angle (pitch)	-	60		degree

RF Performace

Contents	Minimum	Typical	Maximum	unit
Operating frequency	24.0	-	24.25	GHz
Transmitted power	-	6	8	dBm
Antenna gain		10		dBi
horizontal beam (3dB)		100		degree
vertical beam (3dB)		80		degree

Resources

User Manual and User Protocol

Datasheet
