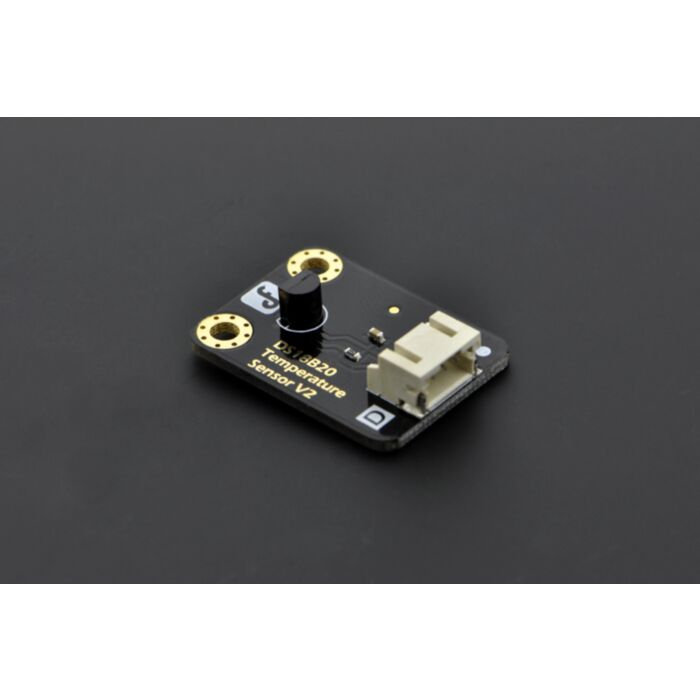

18B20 Temerature Sensor (Arduino Compatible)

Rating:

100% of 100

SKU: DFR0024 Brand: DFRobot

DS18B20 is a digital temperature sensor which is from DALLAS U.S. It can be used to quantify the environmental temperature testing.

$9.90 AUD, inc GST

$9.00 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 23rd of Apr

Quantity Discounts:

10-25 $8.73 (exc GST)
25+ $8.55 (exc GST)

Introduction

DS18B20 is a digital temperature sensor which is from DALLAS U.S. It can be used to quantify the environmental temperature testing.

The temperature range -55 ~ +125°C, the inherent temperature resolution of 0.5°C, support multi-point networking mesh. Three DS18B20 can deloyed on three lines, to achieve multi-point temperature measurement. It has a 9-12 bit serial output.

This sensor can be directly plug and play with our IO expansion shield.

Features

Digital temperature conversion and output
Advanced single-bus data communication
Maximum 12-bit resolution, accuracy up to ±0.5 degrees Celsius
Parasitic mode available
Temperature detection range: -55°C ~ +125°C (-67°F ~ +257°F)
Built-in EEPROM and temperature limit

Specification

Voltage: +5V
Interface:Digital
Pin definition: 1--Output 2-Power 3---GND
Weight: 5g

Documents
