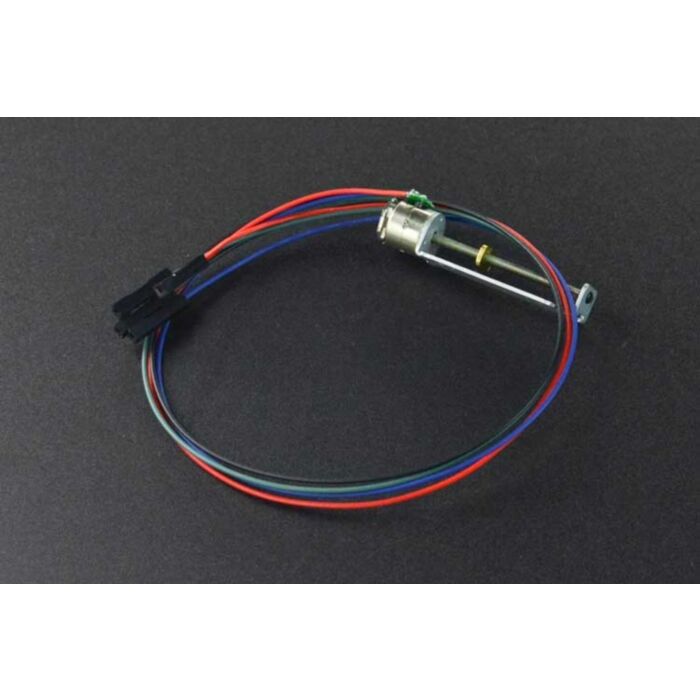

18° Micro Stepper Motor for Arduino

SKU: FIT0708 Brand: DFRobot
For stepper motor newbies, you’ve just come to the right place! This 10mm micro stepper motor offers 18° per step and 2-phase 4-wire. No special driver board required...
$22.30 AUD, inc GST
$20.27 AUD, exc GST

Available with a lead time
Expect dispatch between Mar 12 and Mar 17

Quantity Discounts:

  • 10-25 $19.46 (exc GST)
  • 25+ $18.85 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

For stepper motor newbies, you’ve just come to the right place!

This 10mm micro stepper motor offers 18° per step and 2-phase 4-wire. No special driver board required, the stepper motor can directly work with main-controllers like Arduino, ESP32, etc. There is a metal slider on the motor’s slide rod, which makes it applicable to projects like automatic door-lock, camera propeller, and DIY smart home.

Pinout

Specification

  • Driving Voltage: DC3.3-5V
  • Coil Resistance: 20Ω±10%
  • Phase: 2
  • Step Angle: 18°/step
  • Excitation: 2-2 phase excitation
  • Driving Method: bipolar drive
  • Max Auto-start Frequency: 1500PPS Min
  • Insulation Grade: E CLASS
  • Withstand Voltage: 100V AC,1S
  • Insulation Resistance: 1.0MΩ(DC100V)
  • Operating Temperature Range: -10°C ~ +60°C

Parts List

  • 18° Micro Stepper Motor x1
