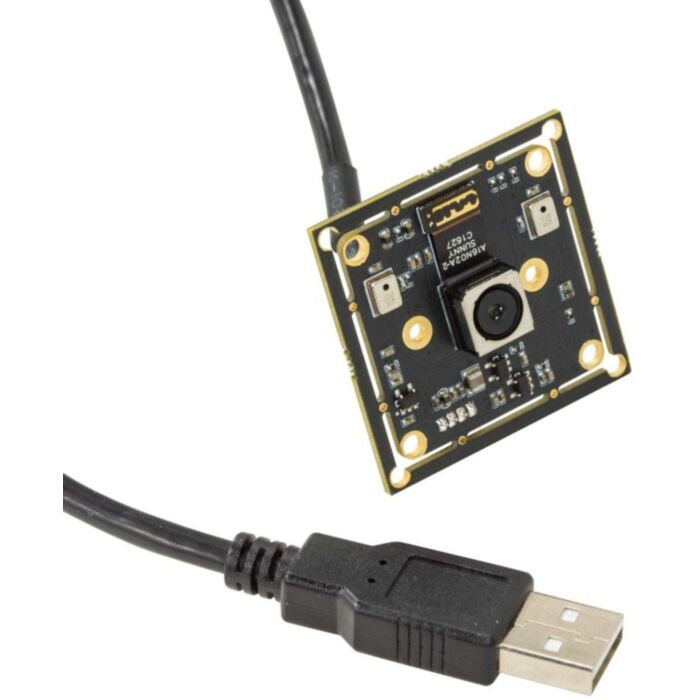

16MP Autofocus USB Camera with Microphone

SKU: AC-B0290 Brand: Arducam

It is based on the 1/2.8" IMX298 image sensor, UVC-compliant, autofocus USB 2.0 camera and microphone.

$119.95 AUD, inc GST

$109.05 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Mon, 25th of Nov

Quantity Discounts:

5-10 $104.68 (exc GST)
10+ $101.41 (exc GST)

Arducam 16MP camera module is a new member of the Arducam's USB camera family. It is based on the 1/2.8" IMX298 image sensor, UVC compliant, autofocus USB 2.0 camera.

No longer be anxious about installing the driver! The native UVC drivers of Windows, Linux and Mac shall be compatible with this camera so that it does not require extra drivers to be installed.

Features

High Quality Imaging: This small camera module adopts 16MP IMX298 sensor for sharp image and accurate color reproduction, still picture resolution: 4656 x 3496 Max.
Autofocus: Shoot objects in millimeter level and in the distance on the same camera, automatically controlled without lens adjustment tool, closer and easier than the fixed focus camera.
Plug&Play: UVC-compliant, just connect the camera to PC, laptop, Android device or Raspberry Pi with the included USB cable without extra drivers to be installed.
Applications: This small 38mmx38mm camera board is highly recommended for a home surveillance system, monitoring 3D Printer, object recognition and tracking, or other machine vision applications which demand high resolution.
Serial Number: Supports modifying the Serial Number.

Specifications

Camera

Sensor: 1/2.8” IMX298
Resolution: 16MP 4656H x 3496V
Data Format: MJPG/YUY2
Frame Rate: MJPG 10fps@4656×3490/3840×2160/2592×1944, 30fps@2320×1744/1920×1080/1600×1200/1280×720/800×600/640×480/320×240; YUY2 5fps@1600×1200, 10fps@1280×720, 15fps@800×600, 20fps@640×480/320×240

Lens

Field of View (FOV): H= 60°
Focusing Range: 100mm to infinity
IR Sensitivity: Integral IR filter, visible light only

Functionality and Compatibility

Auto Controlled Features: Saturation, Contrast, Acutance, White balance, Exposure.
System Compatibility: Windows, Linux (Android compatibility: contact us for support)

Power

Power Supply: DC 5V
Working Current: MAX 200mA

Physical

Operating Temp.: -4°F~158°F (-20°C~+70°C)
Dimension: 38mmx38mm
Cable Length: 3.3ft (1M)

Documentation
