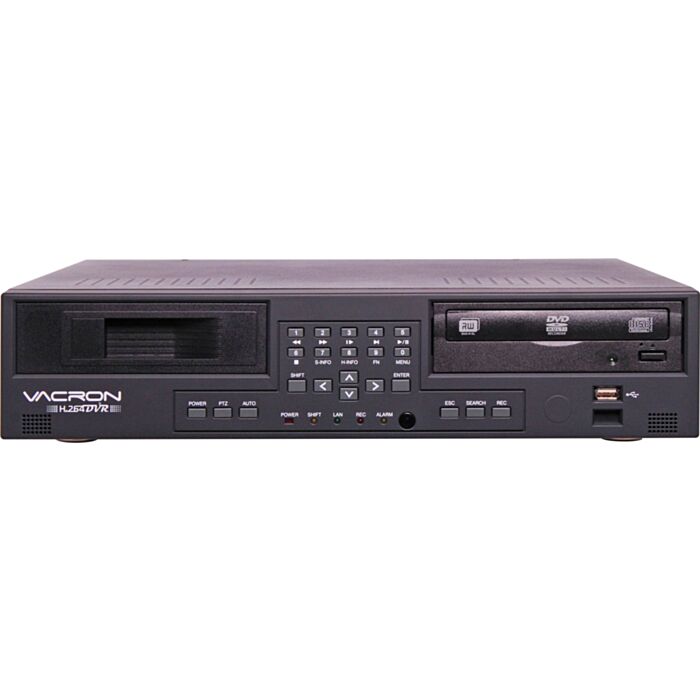

16 Ch. Hybrid 960H Analog IP Digital Video Recorder (DVR) with DVD-R

SKU: AS9349H

Retired Product

Search for an alternative

This product has been retired. It is no longer available, but this page has been kept for reference.

This 16 channel digital video recorder is designed to support connection to both analog and IP cameras. These systems also feature 960H real time (25fps) recording on all channels. Monitor connection is available via HDMI, VGA or composite video.

Footage archiving and backup is available via USB connection or using the DVD backup drive. It can be fitted with four hard drives up to a maximum capacity of 4TB each, with the option of connection to external drives via USB.

Online viewing of live and recorded footage is available on IE, Firefox, Safari and Chrome web browsers. Plus on iOS and Android powered mobile devices. PTZ control of cameras is also available during online viewing sessions.

Individual channels can be tailored to suit the installation with settings such as brightness, contrast, saturation, hue & gain, all fully adjustable. Motion detecting areas can be easily set up for all channels. Recording can be triggered via external contacts such as alarms, infra red sensors etc. or alternatively scheduled recording or full time recording is available. Includes power supply. Hard drives sold separately.

Features

96H real time 25fps recording on all channels
Hybrid IP/Analog recording
DVD backup drive
H.264 compression
Real-time live display
Mobile monitoring via iPhone, Android etc
Quad hard disk bays
Includes IR remote control and mouse
VGA, HDMI and CVBS monitor output
Audio inputs and outputs via RCA
Adjustable frame rate and quality
Adjustable motion detection on all channels
User friendly video file management
Full HD video output
Software included for remote access & footage playback
PTZ control
Pre-alarm recording
USB file backup
Key lock password
Video loss detection

Mobile Apps
iOS Vacron Viewer App

Android Vacron Viewer App

NOTE:
WE ARE UNABLE TO PROVIDE DETAILED TECHNICAL SUPPORT FOR THIS PRODUCT AS INSTALLATIONS VARY GREATLY IN CONFIGURATION. WE RECOMMEND OUR DVR'S BE INSTALLED BY A SECURITY PROFESSIONAL AS INSTALLATION CAN BE A COMPLEX PROCESS REQUIRING TECHNICAL KNOWLEDGE.

Specifications

Video System: PAL
Video Compression: H.264
Video Input: 1Vp-p 75Ω BNC
Video Output: BNC, VGA, HDMI
Audio Inputs: 1 per channel (RCA)
Audio Outputs: 1 (RCA)
HDD Bays: 2 x SATA II, 4 for S 9349H
Record Modes: Manual, Timer, Motion, Alarm & Remote
Multiplex Operation: Live, Record, Playback, Backup & Network Transfer
PTZ Control: Yes
Alarm Outputs: 4
Alarm Inputs: 1 per channel
Backup: USB 2.0, Network, DVD-R
Motion Detect: 16x12 grids per channel
Motion Sensing: 3 adjustable parameters
Video Settings: Hue, Saturation, Contrast, Brightness
Ethernet: 10/100
Protocols: TCP/IP, PPPOE, DHCP, DDNS, UPnP
Event Notify: FTP, Email, Smartphone App
Operating System: Windows & Mac OS X
App OS: iOS, Android
Power: 12V dc @ 5A.
Size (mm): 419Wx393Dx97H
