1517 Series Counterbored Pattern Spacer (32mm Bore, 8mm Length)

SKU: GB-1517-0032-0080 Brand: goBilda

This Counterbored Pattern Spacer has a length of 8mm and provides thru-holes and threaded holes on the 32mm Pattern. When fastened down.....

$10.85 AUD, inc GST

$9.86 AUD, exc GST

Available with a lead time
Expect dispatch between Nov 20 and Nov 25

Quantity Discounts:

10-25 $9.37 (exc GST)
25+ $8.88 (exc GST)

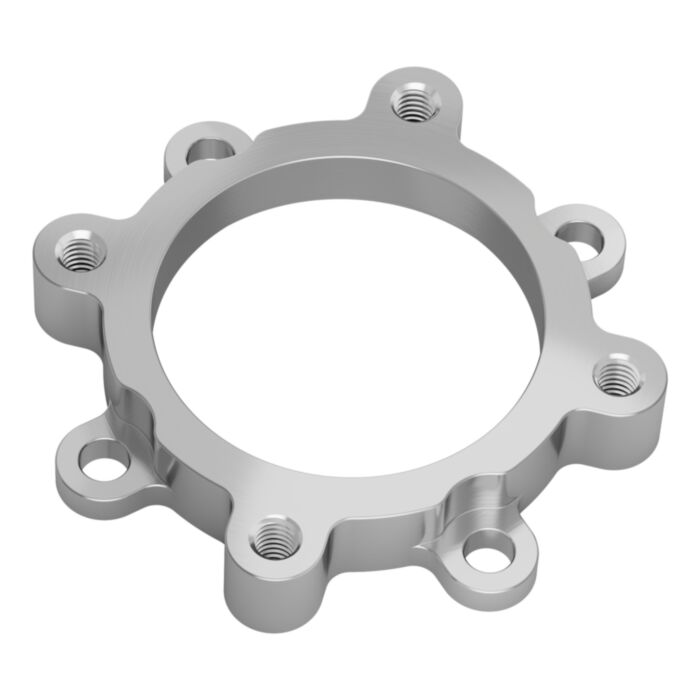

This Counterbored Pattern Spacer has a length of 8mm and provides thru-holes and threaded holes on the 32mm Pattern. When fastened down using the thru-holes, the threaded holes provide a convenient mounting point for the next component in your assembly. The counterbore on the thru-holes allow the screw heads to be flush with or below the top face. The 32mm bore allows 32mm OD tubing or goTUBE to pass thru. The underside has a bearing recess which allows it to capture the 1601-1032-0012 12mm bore flanged ball bearing.

Downloads

STEP File

Specs

Weight	13g
Material	Aluminum
Finish	Clear Anodized
