13.3inch e-Paper Display (B), E-Ink Display, 960×680 pixels, Red / Black / White, SPI Communication, Partial Refresh Support

SKU: WS-27112 Brand: Waveshare
13.3inch e-Paper Display (B), E-Ink Display, 960×680 pixels, Red / Black / White, SPI Communication, Partial Refresh Support, Optional for e-Paper...
$339.95 AUD, inc GST
$309.05 AUD, exc GST

Available with a lead time
Expect dispatch between May 05 and May 07

- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

low power, wide viewing angle, paper-like effect without electricity

Ideal for price tags, shelf labels, industrial instruments...

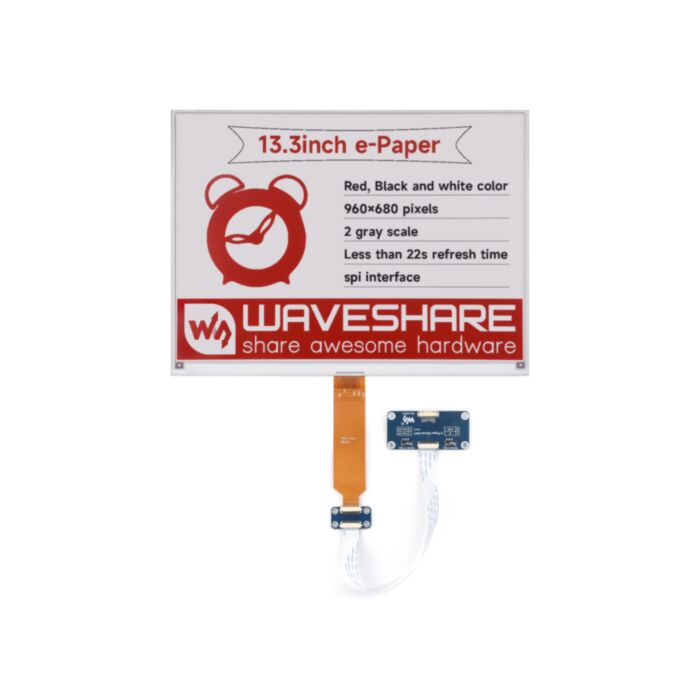

13.3inch red / black / white e-Paper display, front view
Note: the e-Paper Driver HAT and accessories are optional, please refer to the Package Content for detailed part list



Version Options



13.3inch e-Paper (B)

13.3inch e-Paper (B) raw display, without driver board

Features at a glance
  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • Comes with development resources and manual (driver board circuit diagram, examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
  • Optional for e-Paper Driver HAT:
    • With standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards/Jetson Nano
    • Adapting SPI interface for connecting with controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32, etc.
    • Onboard voltage translator, compatible with 3.3V / 5V MCUs
Specifications
operating voltage Raw display: 3.3V grey scale 2
e-Paper Driver HAT: 3.3V/5V
interface 3-wire SPI, 4-wire SPI partial refresh time 2.9s
display dimensions 286.32 × 212.26 × 1.20mm full refresh time 22s
display area 275.52 × 195.16mm refresh power 75mW
dot pitch 0.287 × 0.287mm standby current <0.01uA (almost none)
resolution 960 × 680 pixels viewing angle >170°
display color red, black, white

Advantages of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper. E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

Optional for e-Paper Driver HAT

Standard Raspberry Pi 40PIN GPIO header, compatible with Raspberry Pi series boards / Jetson Nano

13.3inch red / black / white e-Paper display, connecting with Raspberry Pi 5



Raspberry Pi 5 in the photo is NOT included. Onboard SPI control interface on e-Paper Driver HAT (Not Included)

for use with controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32

Outline dimensions
13.3inch red / black / white e-Paper display, outline dimensions
Resources

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.



Whats Inluded

13.3inch e-Paper (B)

13.3inch e-Paper (B) x1

13.3inch e-Paper (B)
