12mm Hex Wheel Adapter for 3mm Shaft (2-Pack)

SKU: POLOLU-2682 Brand: Pololu

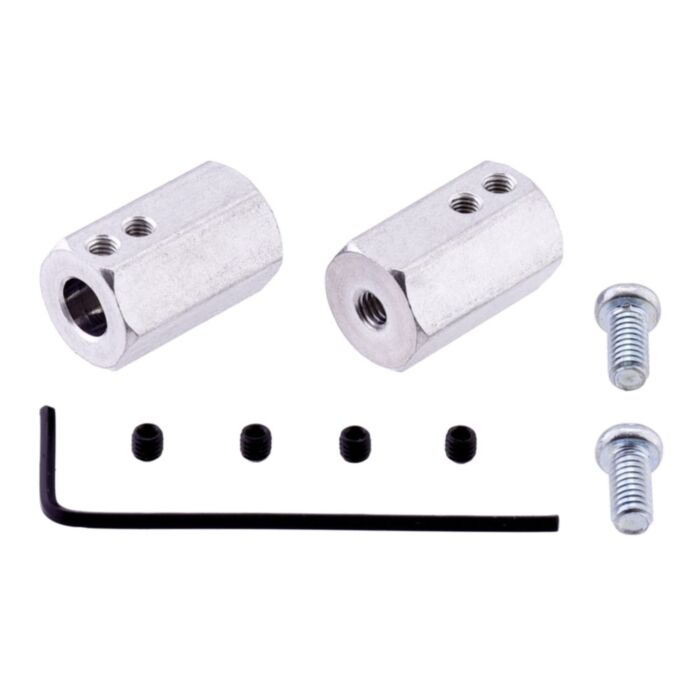

These 17 mm long aluminum adapters convert a 3 mm diameter shaft to a 12 mm hex shaft that is compatible with many common hobby RC wheels. The set includes two adapters, two M4 screws for securing wheels to the adapters, four M3 set screws for securing the adapters to motor shafts, and one 1.5 mm Allen wrench for use with the set screws.

$8.10 AUD, inc GST

$7.36 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 19th of Nov

Quantity Discounts:

10-25 $7.07 (exc GST)
25+ $6.85 (exc GST)

These light-weight aluminum shaft adapters convert a typical motor output shaft into a 12 mm hex shaft that is compatible with many common hobby RC wheels, such as the Dagu Wild Thumper Wheels. The side of each adapter that mounts to the wheel contains a hole tapped for M4 screws, and the other side of the adapter mounts to a motor shaft with two M3 set screws. This set includes a pair of adapters, two 8 mm M4 screws, four M3 set screws, and one 1.5 mm Allen wrench for use with the set screws.

The adapters are available in the following versions:

12 mm Hex Wheel Adapter for 3 mm Shaft (17 mm length)
12 mm Hex Wheel Adapter for 4 mm Shaft (17 mm length)
12 mm Hex Wheel Adapter for 6 mm Shaft (20 mm length)
12 mm Hex Wheel Adapter for 6 mm Shaft, Extended (35 mm length)

Details for item #2682

12mm Hex Wheel Adapter for 3mm Shaft on a Micro Metal Gearmotor.

This version of the 12 mm hex adapter is 17 mm in length and designed to work with 3 mm diameter output shafts, including round and “D” shafts. It works well with Pololu's Micro Metal Gearmotors (as shown in the picture above) and Mini Plastic Gearmotors, as well as the other 3 mm shaft gearmotors Pololu carry. The wheel shown in the above picture is a hobby RC wheel that works with 12mm hex shafts; Pololu do not currently carry this wheel or any other wheels that are compatible with this adapter.

The diagram below shows the dimensions of this shaft adapter and is also available as a downloadable PDF (109k pdf)

Dimension diagram of the Pololu 12mm Hex Wheel Adapter for 3mm Shaft. Units are mm over [inches].

People often buy this product together with:

Pololu Micro Metal Gearmotor Bracket Pair - Black

Pololu Micro Metal Gearmotor Bracket Extended Pair

Pololu Universal Aluminum Mounting Hub for 3mm Shaft, M3 Holes (2-Pack)

Dimensions

Size:	12 mm hex × 17 mm length
Length:	17 mm
Weight:	5.1 g¹
Shaft diameter:	3 mm

General specifications

Style:	short

Notes:

1: For a single adapter only (without set screws or mounting screw).

File downloads

Pololu 12mm hex wheel adapter for 3mm shaft dimension diagram (109k pdf)
Pololu 12mm hex wheel adapter for 4mm shaft dimension diagram (108k pdf)
Pololu 12mm hex wheel adapter for 6mm shaft dimension diagram (134k pdf)
Pololu extended 12mm hex wheel adapter for 6mm shaft dimension diagram (112k pdf)
