ArduCam Global Shutter Color USB Camera

SKU: AC-B0385 Brand: Arducam

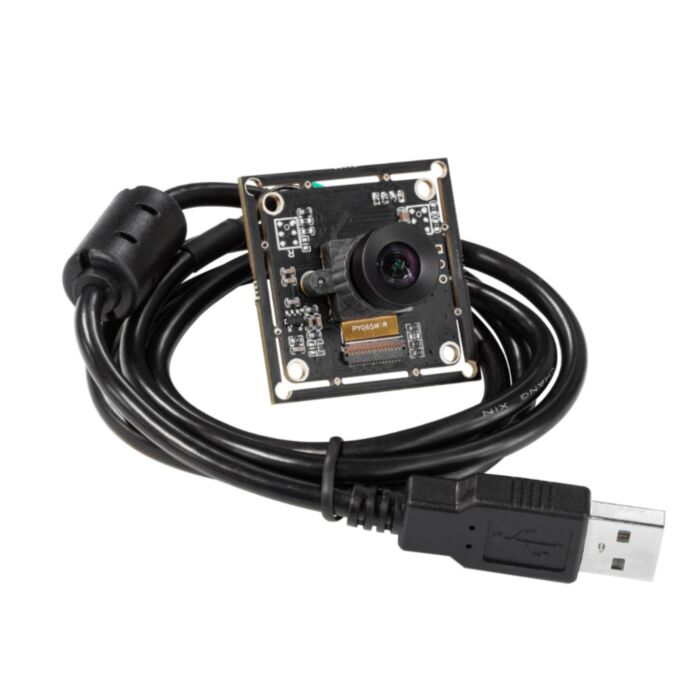

The ArduCam B0385 is a 1MP 120fps OV9782 USB 2.0 camera board. As it is UVC compliant, native drivers built into Windows, Mac, as well as most Linux distros work out of the box.

$104.95 AUD, inc GST

$95.41 AUD, exc GST

Available with a lead time
Expect dispatch between Jan 20 and Jan 22

Quantity Discounts:

5-10 $91.59 (exc GST)
10+ $88.73 (exc GST)

Arducam B0385 is a new member of Arducam's USB camera family. It's a 1MP, based on the 1/4" color global shutter OV9782 image sensor, UVC compliant, low distortion USB 2.0 camera. No longer be anxious about installing the drivers! The native UVC drivers of Windows, Linux, and Mac shall be compatible with this camera so that it does not require extra drivers to be installed.

The global shutter sensor's excellent low-light sensitivity makes it shoot crisp sharp and accurate complete color images even for high-speed moving objects.

Features

Based on 1MP color global shutter sensor OV9782, assembled with a 70°(H) low distortion M12 lens without IR pass filter, sensitive to IR.

Global Shutter: Shoot high-speed moving objects in crisp sharp images. Avoid the rolling artifacts to get a much more accurate complete picture than the rolling shutter cameras. Reserved external trigger ports, support trigger via external signal.

Resolution: 1MP 1280H x 800V; Frame Rates: MJPG 120fps@1280 x 800/720P/800 x 600/640 x 480/320 x 240, 100fps@1280 x 800/800 x 600/640 x 480/320 x 240; YUY2 10fps@1280 x 800/1280 x 720.

Plug&Play: UVC-compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.

Applications

The sensor's excellent low-light sensitivity and the low distortion lens allow it to perform better in any application that needs gesture and eye tracking, iris and physiognomy recognition, depth and motion detection.

Astrophotography
Gesture and eye-tracking
Depth and motion detection
Home video surveillance system

Specifications

Camera

Sensor: 1/4” OV9782

Resolution: 1MP 1280 x 800

Data Format: MJPG/YUY2

Frame Rate: MJPG 120fps@1280 x 800/720P/800 x 600/640 x 480/320 x 240, 100fps@1280 x 800/800 x 600/640 x 480/320 x 240; YUY2 10fps@1280 x 800/1280 x 720.

Lens

Field of View (FOV):70 degree (H)

Lens Mount: M12

IR Sensitivity: IR filter, sensitive to Visible Light

Focusing Range: 3.3ft (1M) to infinity

Functionality and Compatibility

Adjustable parameter: Exposure/ White balance

System Compatibility: Win7/8/10, Linux, Mac, and OS with UVC driver

Power

Power Supply: USB powered 5V

Working Current: MAX 200mA

Physical

Operating Temp.: -4°F~158°F (-20°C~+70°C).

Dimension: 38mmx38mm (Hole pitch compatible with 34mmx34mm, 28x28mm)

Cable Length: 3.3ft (1M)

NOTE:

This camera module support trigger via an external signal, please refer to the Arducam Doc page to get the instruction.

Documentation

Datasheet

Manual
