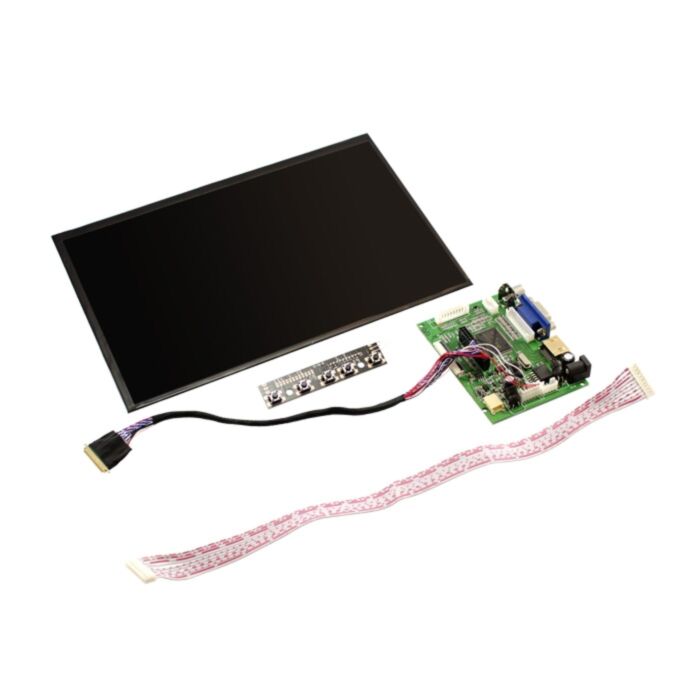

10.1inch Highlight IPS Digital LCD Screen with driver board

Rating:
100% of 100
SKU: CE04869 Brand: Core Electronics
This slim display panel is perfect for bringing a little polish to a project. It will take HDMI, VGA and even composite video so it's very maker-friendly - perfect for a plug-and-play Raspberry Pi display. An included button panel plugs into the driver-board and gives you access to an on-screen menu similar to that of a computer monitor.
$149.95 AUD, inc GST
$136.32 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 19th of Nov

Quantity Discounts:

  • 5-15 $133.59 (exc GST)
  • 15+ $129.50 (exc GST)
- +

4 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This slim display panel is perfect for bringing a little polish to a project. It will take HDMI, VGA and even composite video so it's very maker-friendly - perfect for a plug-and-play Raspberry Pi display. An included button panel plugs into the driver-board and gives you access to an on-screen menu similar to that of a computer monitor.

The display is so thin you could even glue it directly to an outer panel of your project enclosure.

Tech Specs

  • Power requirements (nominal) 12V, 0.5A
  • Power input polarity: Centre-positive
  • Inputs: HDMI, VGA, Composite
  • Driver IC: RTD2660H
  • Dimensions: 228.6 × 149.2 × 3.3typ (along the bottom edge and up 22mm is 4.45mm thick)
  • Visible area: 216.96 (H) x 135.60 (V) mm
  • Resolution: 1280 × 800
  • Colour May Vary: Screen edge may be silver or black

While this unit takes 12V nominal, we've observed stable operation all the way down to 5V! Of course, the current consumption will be higher at lower supply-voltages.

If you are looking for a supply to power this Screen we recommend the 12V DC 2A Fixed 2.1mm Tip Appliance Plugpack
