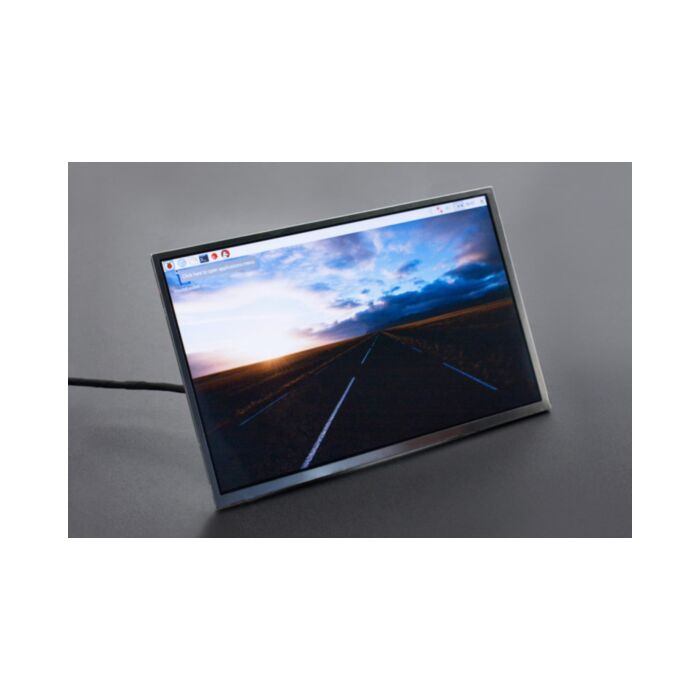

Introduction

This 10.1 inch high-resolution 1280*800 IPS display is especially designed as a monitor for LattepandaRaspberry Pi and othermini PC. The HDMI/VGA/AV interfaces ensure its wide compatibility. Making a digital photo frame, playing a video, adding a face for your robot, you can expand your imagination, make more fun.



Note: A 7.5~12V DC power adapter is needed for this monitor. Click here to get it.

Specification

  • Screen size: 10.1 inch
  • Screen Dimensions: 217 * 135mm/ 8.54 * 5.31 inches (16:10)
  • Display Dimensions: 230 * 150 * 5.2mm/9.05 * 5.9 * 0.2 inches
  • Panel Type: a-Si TFT-LCD Panel
  • Resolution (RGB): 1280x800, WXGA
  • Display Mode: HFFS, Normally Black, Transmissive
  • Surface: Hard coating
  • Brightness: 350 cd/m^2
  • Contrast Ratio: 800:1 (Min.)
  • Input Voltage: 7.5~12V
  • Rated power: 6-7W
  • Signal input: AV + VGA + HDMI (HDMI 1.2)
  • Weight: 344g

Parts List

  • HDMI+VGA+2AV LCD controller board        x1
  • 10.1 inch 1280x800  IPS LCD panel            x1
  • LVDS Cable                x1
  • Keyboard with Wire         x1
