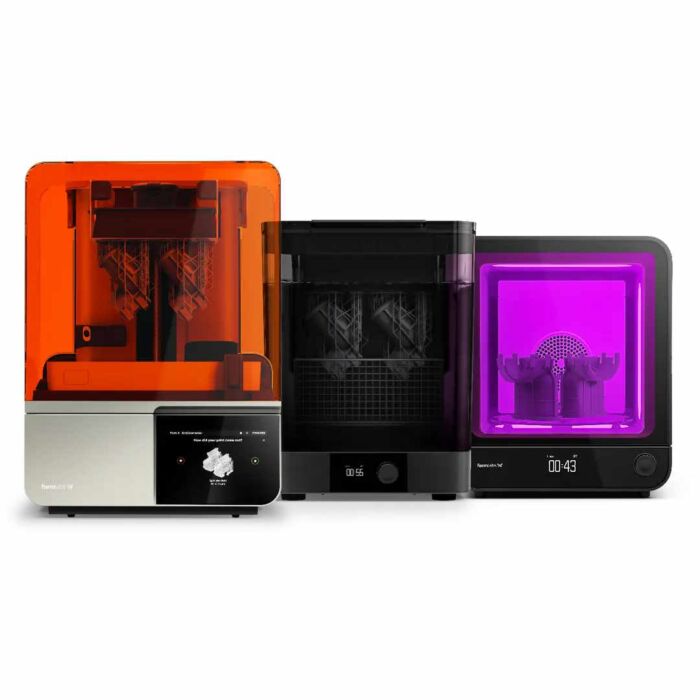

Form 4 - set a new standard for professional 3D printing. By combining the most diverse materials library available with a powerful new print engine, Form 4 printers enable new levels of creativity and productivity.
Iterate three times as fast, multiple times a day, so every possible design is explored. Produce consistent parts at high volumes, without worrying about downtime or reliability issues. Take on more volume and respond to more requests to increase productivity across your organization.
With two to four times faster print speeds, a 30% larger build volume, unmatched reliability and precision, and the most rigorous quality engineering process in the industry, there is no limit to what Formlabs customers can achieve with Form 4.
Form 4 combines a new print engine with updates to the Formlabs materials library — 23 unique resins on Form 4 and 37 on Form 4B available at launch — as well as new accessories and post-processing solutions, and an improved user experience. These updates reaffirm that Formlabs’ resin 3D printing ecosystem is the most powerful tool available for any professional to turn their ideas into reality.
Form 4 enables every individual, team, and organization to get more done. Productivity is never limited by a lack of good ideas — it’s limited by the ability to execute. With faster printing speeds than ever before, products can go through design, print, and testing multiple times a day.
Prints on Form 4 are completed two to four times faster than with any other Form Series resin 3D printer, even for tall parts or batch printing. This new capability outpaces professional 3D printers across every technology and discipline.
Form 4’s speed is driven by the new Low Force Display™ print engine, a powerful combination of high-power LEDs and masking lenses that cure each layer of resin instantly — regardless of part size or quantity. Print speeds are no longer affected by how much of the build platform is covered, so multiple parts can print at once without extending your print time.
3D printed parts need to be precise to be useful. Whether they’re prototypes that need to look like an injection molded plastic, or fixtures that need to mate with existing components on an assembly line, tolerances matter. Speed should never come at the cost of accuracy and precision.
Form 4 not only matches the industry standard for tolerances, it goes beyond. With superior and repeatable tolerances, parts printed in every resin on Form 4 will match your design parameters, every time. Form 4’s Light Processing Unit (LPU) delivers a 50 µm XY resolution so that multi-part assemblies glide together without friction, manufacturing aids integrate seam
Printing Technology | Masked Stereolithography (MSLA) |
---|---|
Resin Fill System | Automated |
Build Volume¹ (W x D x H) |
200 × 125 × 210 MM |
Layer Thickness (Axis Resolution) ² | 25 – 300 microns |
Maximum Print Speed³ | 100 mm/hour 3.9 in/hour |
Typical Print Speed⁴ | Average: 40 mm/hour across all materials Range: 15-100 mm/hour depending on the material |
Typical Dimensional Tolerances⁵ | 1-30 mm features: ±0.15% (lower limit: ±0.02 mm) 31-80 mm features: ±0.2% (lower limit: ±0.06 mm) 81-150 mm features: ±0.3% (lower limit: ±0.15 mm) |
Surface Accuracy (Restorative Models)⁶ | On average with Precision Model Resin: 99.7% of surfaces within 100 μm of CAD model 95% of surfaces within 50 μm of CAD model 69% of surfaces within 25 μm of CAD model |
XY Resolution⁷ | 50 µm with pretuned anti-aliasing for subpixel resolution Superior fine feature performance and sharp features compared to the Form 3 Series |
Resin Cartridges | 1 |
Biocompatible Materials | No (available on Form 3B+) |
Supports | Auto-Generated Light-Touch Removal |
