1 Wire Pi Plus

SKU: CE08231 Brand: Pi Supply

Retired Product

Replaced by: CE07448

This product has been replaced by: CE07448
This product is no longer available. This page is only for reference.

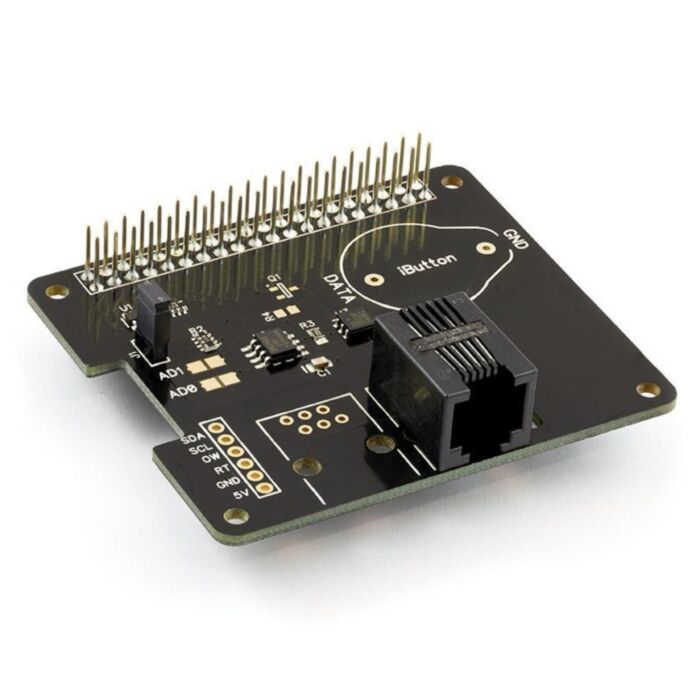

The 1 Wire Pi Plus from AB Electronics UK is a communication board supporting the 1-Wire® protocol designed for use on the Raspberry Pi. A 5V buffered I2C port is also provided on the board. The 1 Wire Pi Plus can be securely fitted to your Raspberry Pi using our mounting kit pack.

Features

1-Wire® to I2C host interface with ESD protection diode.
Stackable with other Raspberry Pi accessory boards.
Buffered 5V I2C port.
External 5V power input for 1-Wire® interface.
2C address selection via solder jumpers.

The 1-Wire® port on the 1 Wire Pi Plus is based around a DS2482-100 I2C to 1-Wire® bridge device. The DS2482-100 provides bi-directional protocol conversion between the I2C port on the Raspberry Pi and any attached 1-Wire® slave devices. An ESD Protection Diode is used to protect the 1 Wire Pi Plus and Raspberry Pi from electrostatic spikes on the 1-Wire® port. Connections to the 1-Wire® port can be made through the RJ-12 socket or the solder points on the PCB. We have a knowledge base articlefor configuring and using the 1-Wire® port on your Raspberry Pi.

The 1 Wire Pi Plus is powered through the host Raspberry Pi using the GPIO port and extended pins on the GPIO connector allow you to stack the 1 Wire Pi Plus along with other expansion boards.
