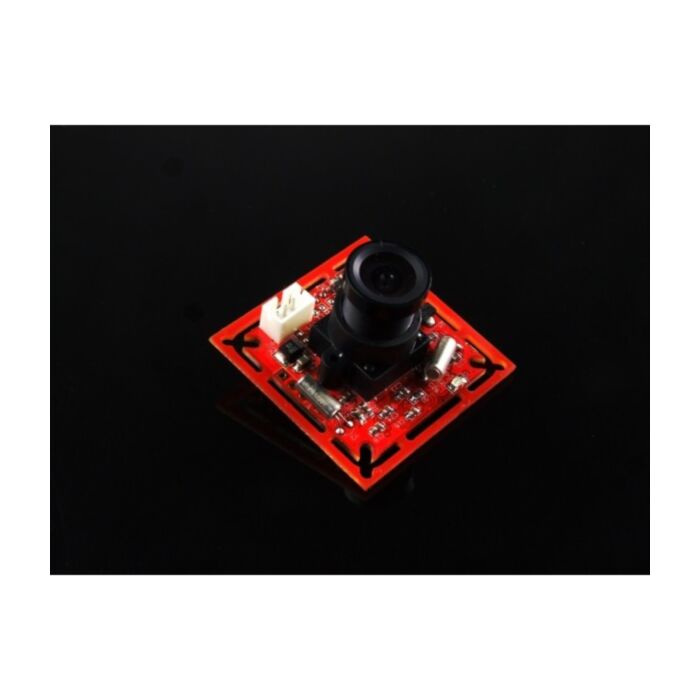

0.3M pixel serial JPEG camera module

SKU: SEN0099 Brand: DFRobot

The ZM 0.3 Megapixel serial JPEG still camera module has a compact size, low power comsuption, and stable operation. 5.0V DC Supply. UART: Up to 115200bps for transferring JPEG images.

Special Price $42.69 AUD, inc GST

Regular Price $77.61 AUD, inc GST

$38.81 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Mon, 25th of Nov

The ZM 0.3 Megapixel serial JPEG still camera module has a compact size, low power comsuption, and stable operation. 5.0V DC Supply. UART: Up to 115200bps for transferring JPEG images. The camera uses the advanced OmniVision OV7725 VGA color sensor JPEG CODEC for different resolutions. The camera also features down sampling, clamping and windowing circuits for VGA, QVGA, and no need for external DRAM. The use of the OmniVision CMOS VGA color sensor makes this a low powered comsuption unit.

NOTE: The interface of this module is using RS232 protocol.

Specifications

5V power supply
Current consumption: 80-100mA
Communication interface/protocol: RS232
VGA/QVGA/160x120 resolution
Support capture JPEG from serial port
Default baud rate of serial port is 115200
Size:1.51x1.51x1.26"(38.35x38.35x32mm)

Pinout

Red wire+5v
Black wireGND
Green wireRS232 RX line
Yellow wireRS232 TX line

Documents

Shipping List

1 x 0.3M pixel serial JPEG camera module
1 x 4 wires cable
