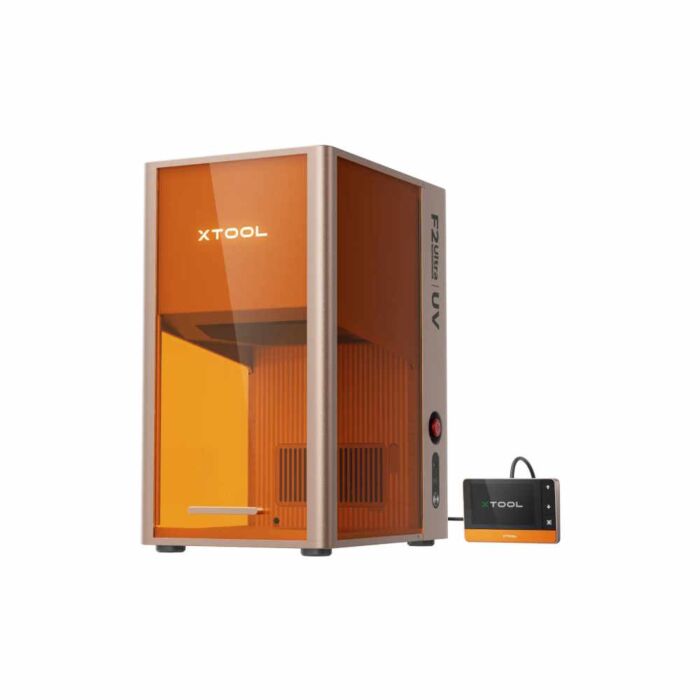

F2 Ultra UV 5W - Machine Only

SKU: CE10472 Brand: xTool

Mark heat-sensitive plastics and clear glass with micron-level detail using the xTool F2 Ultra UV. This 5W 355nm UV laser engraver utilises cold-processing technology to deliver precise results on delicate materials without thermal damage or carbonisation.

$6,887.45 AUD, inc GST

$6,887.45 AUD, exc GST

Available with a lead time
Expect dispatch between Apr 22 and Apr 28

This is professional-grade equipment. Please note:

Treat this equipment like a technician would, read the instructions before use, and perform regular maintenance
Get in touch for assistance

A professional-grade, desktop-sized ultraviolet laser engraver that brings cold laser-processing technology to the benchtop. Unlike traditional infrared or diode lasers, this system operates at a 355nm wavelength, allowing it to mark and engrave materials that are otherwise transparent to other wavelengths or heat-sensitive without causing thermal damage.

Almost Any Material

Makers and prototyping labs often struggle with customising materials like crystal, glass, delicate plastics, and certain ceramics that either crack under heat or fail to react to standard laser wavelengths.

Surface engrave and cut through a range of materials that standard machines can - plastics, paper, wood and many more.

How Does It Have So Much Versatility?

The F2 Ultra UV breaks bonds directly at the surface - a process known as "cold engraving" - which results in minimal heat and clean edges, with few marks on everything from silicon to laboratory glassware without the risk of shattering or melting.

Make Internal Glass Engravings

Engrave glass with professional clarity using the 355nm UV laser, which interacts with clear surfaces that standard lasers simply pass through, enabling stunning 3D subsurface crystal engraving and crisp surface marking.

Built as a robust, fully enclosed Galvo system, the F2 Ultra UV prioritises both safety and high-speed throughput.

Featuring dual 48MP cameras for precise material alignment and a high-resolution micro-sized UV spot for engraving detail that rivals some semiconductor marking equipment.

Core Features

Process heat-sensitive materials without deformation thanks to "cold processing" technology that minimises the heat-affected zone, making it ideal for marking silicone, ABS, and thin films.
Achieve museum-grade detail with an ultra-fine 0.01mm laser spot, allowing for tiny text and intricate patterns that remain legible even on tiny components or jewellery.
Maximise production throughput with high-speed Galvo technology capable of speeds up to 15,000 mm/s, significantly reducing the time required for batch-processing custom labels or logos.
Ensure perfect alignment every time via the dual 48MP camera system, which provides a high-resolution workspace preview to eliminate guesswork and material waste during setup.
Experience the reliability of OEM engineering with a machine designed to work natively with xTool Creative Space (XCS), ensuring consistent firmware updates and a streamlined workflow from design to finished part.

Technical Specifications

Property	Specification
Laser Type	5W 355nm UV Laser (Cold Processing)
Laser Spot Size	0.02mm × 0.02mm
Max Processing Speed	15,000 mm/s
Working Area (Standard)	200mm x 200mm
Working Area (Subsurface)	70mm x 70mm
Positioning Accuracy	0.2mm
Resolution	0.001mm (Vector Fitting)
Max Material Height	150mm
Camera System	Dual 48MP Cameras
Safety Class	Class 4
Dimensions	Approximately 273mm x 373mm x 580mm
Weight	22.5 kg
Compatibility	xTool Creative Space (XCS), LightBurn
