Xbee Breakout Kit (Seeed Studio)

SKU: SS113100001

$9.66 AUD, inc GST
$8.78 AUD, exc GST

More Views

Xbee Breakout Kit (Seeed Studio)
9.66 AUD

SKU: SS113100001

$9.66 AUD, inc GST
$8.78 AUD, exc GST
0 units ship today
Contact us if you need this product urgently

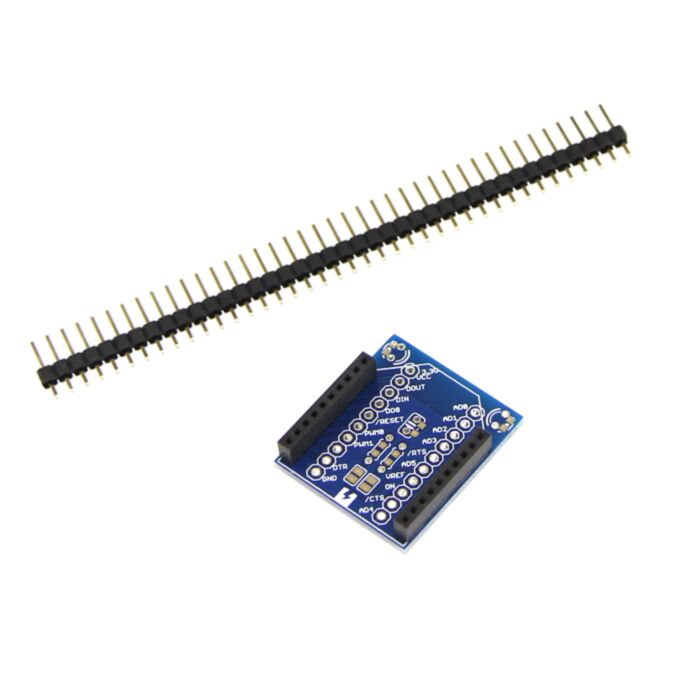

This board breaks out all pins of the XBee to 2.54mm pitch.

You can add a bypass capacitor and/or LED indicators ("ON" and "Associate / AD5") by yourself. These parts are not included in this kit. For detail, please see schematic in the document part.


You can use

  •     • For LEDs, 3mm diameter radial PTH or 0603 (1608 metric) SMD.
  •     • For resistors, 5mm length axial PTH or 0603 or 0805 (1608 or 2012 metric) SMD.
  •     • For capacitor, 100mil (2.54mm) pitch radial PTH or 0603 (1608 metric) SMD.
  •     • You need to short solder jumpers side of the resistors if use LED indicators.


PART LIST

  •     • 1 x PCB (25.4mm x 29.21mm)
  •     • 2 x 2mm pitch 1x10pin socket
  •     • 1 x 100mil (2.54mm) pitch 1x40pin break away header


DOCUMENTS

Schematic


NOTE

No XBee radio module included.
