Waveshare RP2350A USB Mini Development Board

SKU: WS-30274 Brand: Waveshare
Waveshare RP2350A USB Mini Development Board, Based On Raspberry Pi RP2350A Dual-core & Dual-architecture Microcontroller, 150MHz Operating Frequency...
$9.70 AUD, inc GST
$8.82 AUD, exc GST

Available with a lead time
Expect dispatch between Jul 04 and Jul 07

Quantity Discounts:

  • 10+ $8.46 (exc GST)
  • 25+ $8.20 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

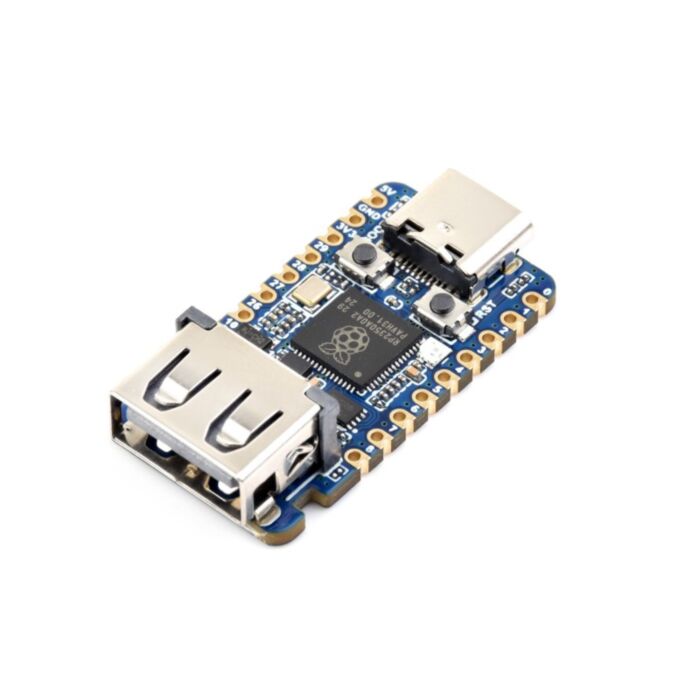

The Waveshare RP2350A USB Mini Development Board is a compact and versatile board built around the RP2350A microcontroller. It features a unique dual-core architecture combining an Arm Cortex-M33 and a Hazard3 RISC-V processor, running at up to 150 MHz.

With 520KB of SRAM, 2MB onboard Flash, and support for USB 1.1 device and host, it also includes an onboard USB Type-A port via PIO for extended connectivity. The board is equipped with a USB Type-C connector, castellated edges for direct soldering, and supports drag-and-drop programming over USB.

Specifications

  • RP2350A microcontroller.
  • Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard3 RISC-V processor, flexible clock running up to 150 MHz
  • 520KB of SRAM, and 2MB of onboard Flash memory
  • Type-C connector, keeps it up to date, easier to use
  • Castellated module allows soldering directly to carrier boards
  • USB 1.1 with device and host support
  • Onboard 1x USB Type A expansion port via PIO, compatible with USB 2.0/1.1 transmission
  • Low-power sleep and dormant modes
  • Drag-and-drop programming using mass storage over USB
  • Adapting 15 × multi-function GPIO pins
  • 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 14 × controllable PWM channels
  • Accurate clock and timer on-chip
  • Temperature sensor
  • Accelerated floating-point libraries on-chip
  • 12 × Programmable I/O (PIO) state machines for custom peripheral support

What's On Board

RP2350A USB Mini development board, onboard components
  1. USB 2.0 Type A connector - Supports USB host or device via PIO
  2. BOOT button - Press it when resetting to enter download mode
  3. RESET button
  4. RP2350A - Dual-core and dual-architecture design, up to 150 MHz operating frequency
  5. WS2812 - cool RGB LED
  6. RT9013-33GB - 500mA LDO regulator, low noise, ultra-fast response
  7. W25Q16JVUXIQ - 2MB NOR-Flash
  8. USB Type-C connector - for programming, USB 1.1 with device and host support


Dimensions

RP2350A USB Mini development board, outline dimensions

Resources

Shipping List

  • 1 x RP2350-USB-A
