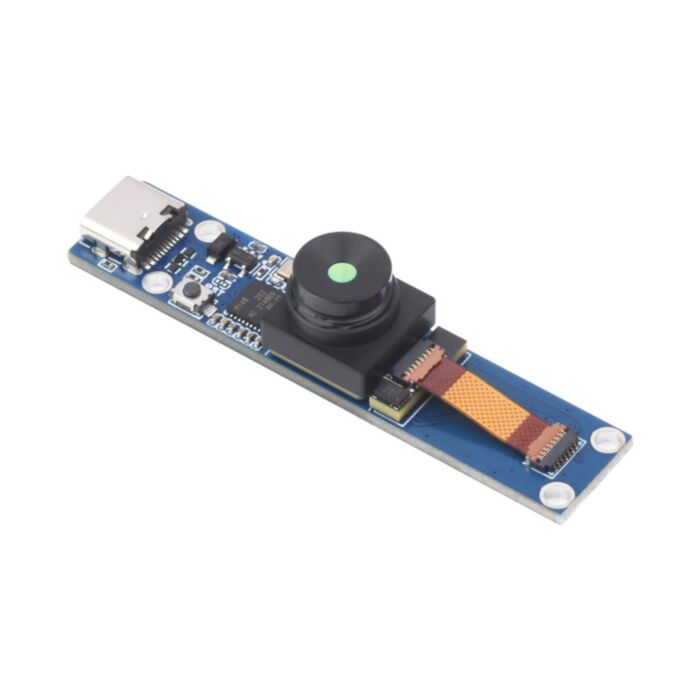

Long-wave IR Thermal Imaging Camera Module - USB-C

SKU: WS-26984 Brand: Waveshare

Retired Product

Search for an alternative
This product has been retired. It is no longer available, but this page has been kept for reference.

This long-wave IR thermal imaging camera uses a hybrid o fmicrobolometer technology and a 80x62 thermopile pixel array. It will detect the IR distribution of objects in the field of view, calculate the data into surface temperature, and then generate thermal images.

Key features

  • Hybrid  microbolometer and thermopile pixel array technology
  • Continuous operation and thermal imaging video streaming
  • Noise Equivalent Temperature Difference (NETD) 150mK RMS@1Hz refresh rate
  • Up to 25FPS (Max) thermal imaging video stream output
  • Comes with online resources and manuals (Python demo for Raspberry Pi, and user manual)

Specifications

Power supply 5V
Operating current 61mA@5V
wavelength range 8~14µm
Operating temperature -20 ~ 85°C
Target temperature -20 ~ 400°C
Refresh rate 25 FPS (Max)
FOV Wide angle version: 90°(H)×68°(V)
Noise Equivalent Temperature Difference 150mK
Measuring Acctracy ±2°C (ambient temp. 10 ~ 70°C)
Dimensions Thermal USB Camera / Thermal-90 USB Camera: 62.0×13.0mm
