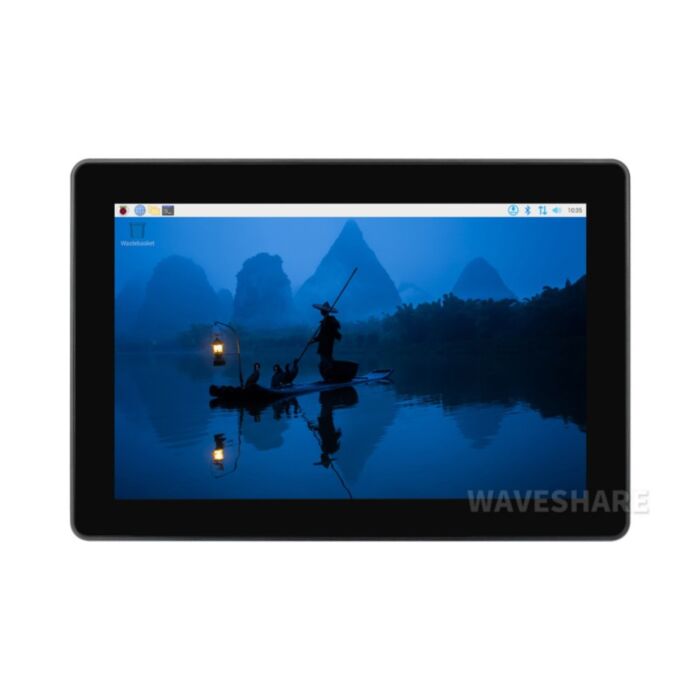

Industrial HMI All-in-one Touch Display For Raspberry Pi (8-inch, BYO Pi + PSU)

SKU: WS-31550 Brand: Waveshare

Industrial HMI All-in-one Touch Display For Raspberry Pi,

$231.60 AUD, inc GST

$210.55 AUD, exc GST

Available with a lead time
Expect dispatch between Nov 28 and Dec 01

Build a rugged, touch-first control interface without the faff. This 8-inch industrial HMI display is purpose-built for Raspberry Pi projects where clarity, durability and a clean install matter.

With a crisp 1280 x 800 IPS panel, 10-point capacitive touch under toughened glass and optical bonding for low glare, it drops neatly into kiosks, dashboards and machine UIs. The aluminium alloy enclosure and high-efficiency heat dissipation suit continuous duty. This listing is for the 8-inch display only — no Raspberry Pi and no power supply are included.

Technical Specifications

Screen size	8 inch
Resolution	1280 x 800
Display panel	IPS
Viewing angle	178 degrees
Touch type	Capacitive, 10-point
Touch cover	Toughened glass
Touch panel tech	Optical bonding
Front camera	5 MP
Display interface	Dual standard HDMI, 4K output
Power port	Type-C or screw terminal
Enclosure	Aluminium alloy
Range options	8 inch / 10.1 inch (this product is 8 inch)

Additional Resources

What’s Included

8 inch industrial HMI touch display unit with aluminium alloy case
No Raspberry Pi included
No power supply included
