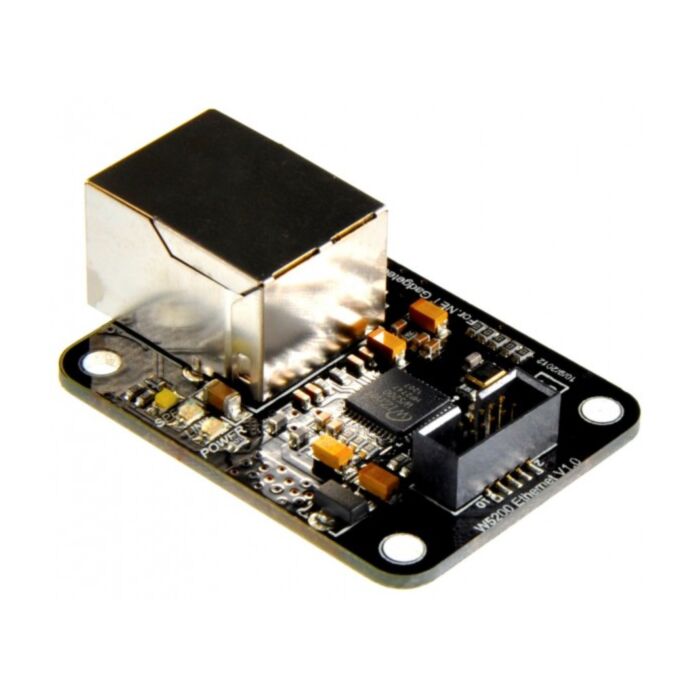

W5200 Ethernet Module(Gadgeteer Compatible)

SKU: TOY0022 Brand: DFRobot

Retired Product

Search for an alternative

This product has been retired. It is no longer available, but this page has been kept for reference.

Introduction

This W5200 Ethernet Module is .NET Gadgeteer compatible, which uses the .NET Micro Framework to make writing code for your device as easy as writing a desktop, Web or Windows Phone application.

This module is composed of a fully TCP/IP stack. The Ethernet application can be easily implemented via a simple socket program. SPI is provided for easy connection to the .NET Gadgeteer main board. Compared to the W5100 it doubles the simultaneous socket connections up to 8. The onboard LED indicates the network state between 10Mb and 100Mb.

You can easily let your Gadgeteer online through this module and then your Gadgeteer main board can easily controlled wherever Internet is available. There are massive applications of it ranging from industry to avionics, telecommunication, and multimedia.

Application

Home Network Devices: Set-Top Boxes, PVRs, Digital Media Adapters
Serial-to-Ethernet: Access Controls, LED displays, Wireless AP relays, etc.
Parallel-to-Ethernet: POS / Mini Printers, Copiers
USB-to-Ethernet: Storage Devices, Network Printers
GPIO-to-Ethernet: Home Network Sensors
Security Systems: DVRs, Network Cameras, Kiosks
Factory and Building Automations
Medical Monitoring Equipments
Embedded Servers

Specification

.NET Gadgeteer Compatible
Power supply 3.3V
Interface SPI
Working temperature -55℃～+125℃
Support Hardwired TCP/IP Protocols : TCP, UDP, ICMP, IPv4 ARP, IGMP, PPPoE, Ethernet
Supports 8 independent sockets simultaneously
Support Power down mode
Internal 32Kbytes Memory for Tx/Rx Buffers
10BaseT/100BaseTX Ethernet PHY embedded

Shipping list

W5200 Ethernet Module(.NET Gadgeteer Compatible) 1 unit
Cable for Gadgeteer1 unit
