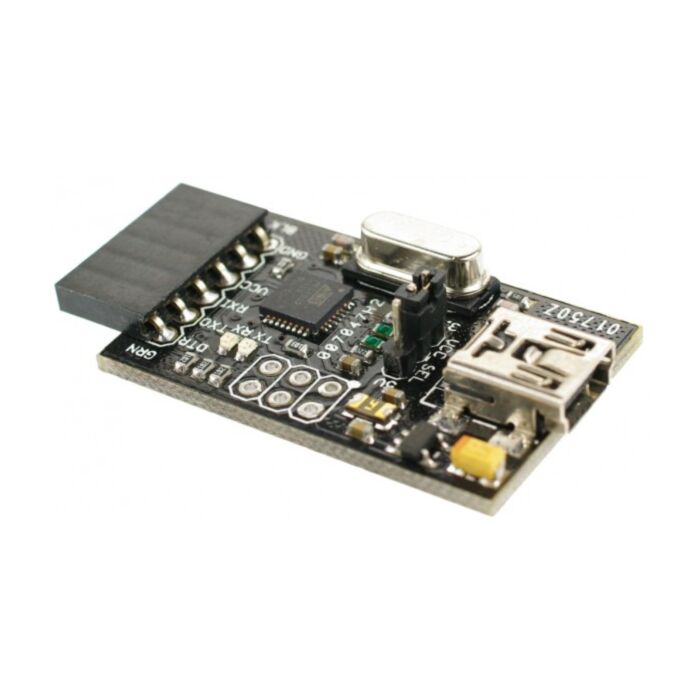

    USB Serial Light Adapter (Arduino Compatible)

    SKU: DFR0164

    $21.32 AUD, inc GST

    More Views

    USB Serial Light Adapter (Arduino Compatible)
    21.32 AUD

    SKU: DFR0164

    $21.32 AUD, inc GST
    2 reviews 0 5 4
    50 units ship in 3 to 5 days (delivered by Thu, 2nd of Mar)
    Shipping Offer

    Introduction

    This is a new version of the FTDI breakout board features an Atmega8U2 programmed as a USB-to-serial converter, the same chip found on the Arduino Uno. The 8U2 firmware uses the standard USB COM drivers, and no external driver is needed. However, on Windows, a .inf file is required.

    The USB Serial Adapter has an onboard mini-USB connector and 5 pins including RX (for receiving data from the computer) and TX (for transmitting data). 5V or 3.3V(selcted by switching the jumper), Ground and a Reset pin are also exposed. Status lights include RX and TX activity.  The adapter can easily connect to the Arduino Ethernet, Mini, Mini Pro, LilyPad, LilyPad Simple, and Fio.

    Specifications
    • 3.3/5V output(switchable via Jumpers)
    • Dimensions:40 X 21mm
    Shipping List
    • USB Serial Light Adapter (8u2) (1 Unit)

    Documents

    This product is listed in:

    Documentation and Resources:
    • How to use an ESP8266 in the Arduino IDE
    • In August of 2014 Shanghai-based chip manufacturer, Espressif, released a ultra-cheap Serial to Wi-Fi chip called the ESP-01. At the heart of the ESP01 was an ESP8266 chip broken out into the 8 pins needed to program it via a microcontroller. You cou...

    Product Comments


    Customer Reviews

    1. Review by Terrence verified purchaser
      Rating
      100

      This USB serial light adapter is easy to use, can do 3.3V and 5V levels with the jumper connector so it will suite many systems, once again an all round excellent product. (Posted on 28/11/2016)

    2. Review by Stuart - Bit of a todo under Windows 7 without Arduino IDE verified purchaser
      Rating
      60

      The web site states that a "Windows, a .inf file is required". This is obtained from the Arduino site (http://arduino.cc/en/Main/Software#toc2) by downloading (but not installing) their development environment files (i.e. use the download link "Windows ZIP file") and once unzipping them finding Arduino.inf in the "Drivers" folder, right clicking and selecting "install". This gets it all working as a virtual com port under Windows. (Posted on 19/11/2014)
