USB HID Host Module

SKU: 017-MB-CM13111

$20.87 AUD, inc GST
$18.97 AUD, exc GST
1 reviews 0 5 3
This product has been retired and kept here for reference.

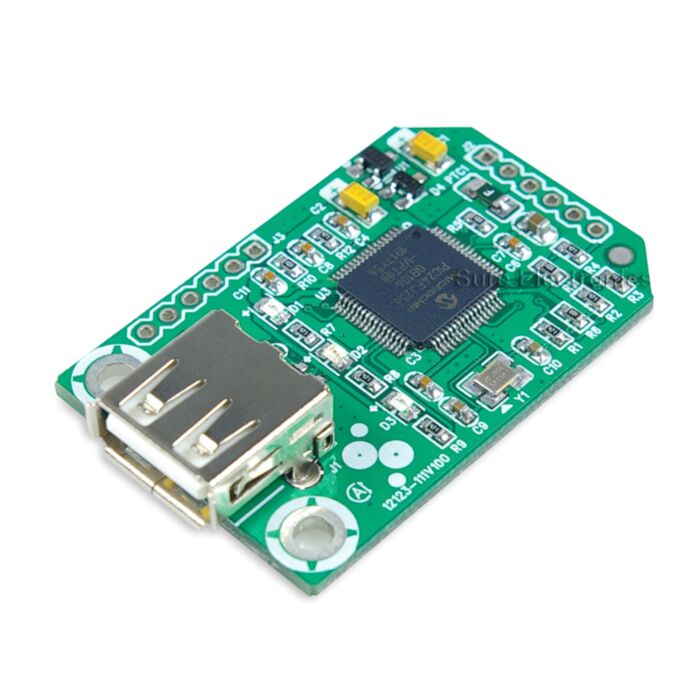

This is a minimized USB HID Host module which provides an easy-to-use solution, via UART communication software, to gain the information of USB HID mouse devices and USB HID keyboard devices as well as read and write to USB mass storage devices. This module features a PIC24FJ256GB106 IC, one USB A port, I/O interface and programming interface. The I/O interface can be used as either a UART interface or an SPI interface , via which this module can communicate with PC with the help of an extra converter.


  • Size: 48.34(L) × 30.40(W) × 9.64(H)  ±0.2mm
  • Integrated with PIC24FJ256GB106 IC from Microchip
  • USB A port for connection with:
    USB HID Mouse Device
    USB HID Keyboard Device
    USB Mass Storage Device
  • Only four signals to connect, excluding power and ground
  • Jumper sel ectable UART or SPI interfaces
  • Single 5V supply input
  • Three LED indicators
  • The default baud rate is 57600 bps after power-on
  • High-performance ESD-safe USB A port


  • USB HID mouse devices
  • USB HID keyboard devices
  • USB mass storage devices


Documentation and Resources:

Product Comments

Customer Reviews

  1. Review by Philip - Great first step to USB HID interfacing verified purchaser

    USB is a complicated thing to understand. This module takes away all that complexity and just outputs the raw data sent from the HID device.

    What needs to be mentioned in the description is the requirement of a Microchip PIC programmer so you can change the firmware in the main IC. Two different firmware hex files needed, one for HID mouse/keyboard and the other for mass storage. (Posted on 7/02/2014)
