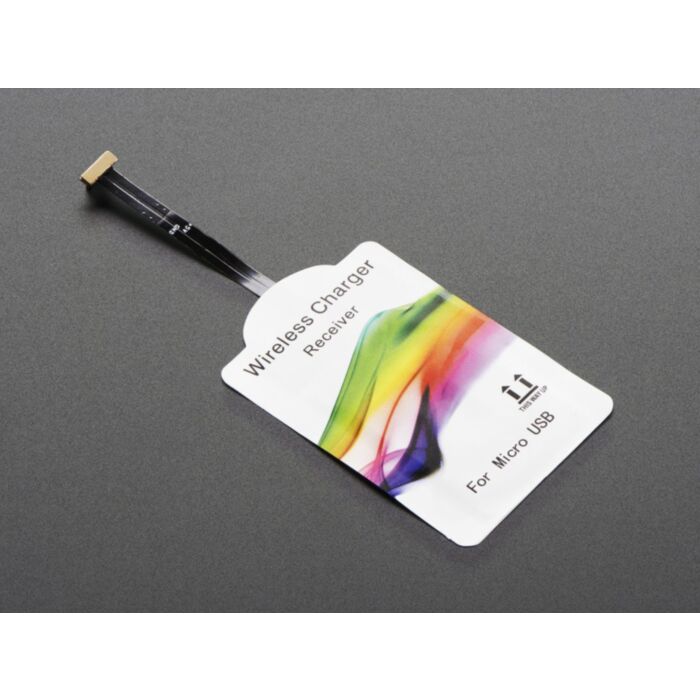

Universal Qi Wireless Charging Module - 60mm Reverse MicroUSB

SKU: ADA2115

$41.95 AUD, inc GST
$38.14 AUD, exc GST

More Views

Universal Qi Wireless Charging Module - 60mm Reverse MicroUSB
41.95 AUD

SKU: ADA2115

$41.95 AUD, inc GST
$38.14 AUD, exc GST
In stock, with a short lead time. 24 units dispatch in 4 to 8 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Thu, 21st of Dec with Express Post within Australia.

If you have a modern smart phone you may have noticed that it comes with built in wireless charging capability called 'Qi charging.' Qi is a trademark name for a thin and smart inductive charging system. Many large gadget companies have standardized on Qi, which means it's easy to find a charging dish and Adafruit thought it might be cool if your electronics project or phone with a microUSB port can recharge itself wirelessly. Thus, Adafruit now have four different MicroUSB Modules for different phone/device orientations.

This is the 60mm Reverse version of Adafruit's different Qi MicroUSB Modules. We also have a 20mm Forward, a 20mm Reverse, and an 60mm Forward.

Check out the big photo above of the microUSB connector orientation to determine which module you need!

Adafruit have a generic photo showing how the module sticks to the back of Adafruit's Android phone, but you'll have to check the MicroUSB connector orientation to determine which length/type of Qi module you need.

These receivers only provide power on the USB's +5V and Ground pins. Some phones (like the Moto X) require a special voltage on the data lines, and won't charge. Check online documentation for your phone to see if you can get away with not having any voltages or connections on the data lines!


You do need a Qi transmitter to go along with the receivers - which Adafruit now carry in the Adafruit store.


Technical Details

  • Output Voltage: DC5V
  • Output Current: 600mA Max
  • Max Power Transmission: DC 5W
  • Operating Frequency: 100-200Khz
  • Conversion efficiency: >70%
  • Charging distance: 2-6mm
  • Weight Weight: 25g

As of Tuesday, August 11th, 2015 the cable length is 60mm.
