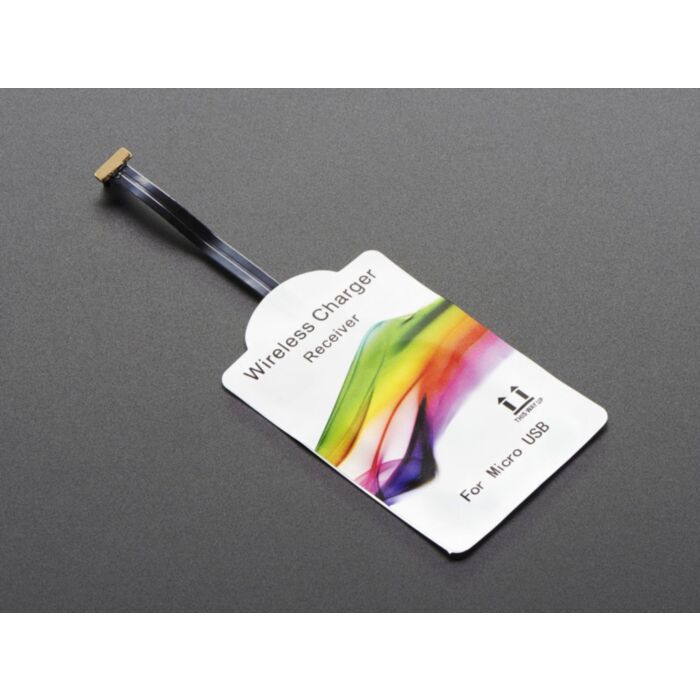

Universal Qi Wireless Charging Module - 60mm Forward MicroUSB

SKU: ADA2117 Brand: Adafruit

Retired Product

Search for an alternative

This product has been retired. It is no longer available, but this page has been kept for reference.

If you have a modern smart phone you may have noticed that it comes with built in wireless charging capability called 'Qi charging.' Qi is a trademark name for a thin and smart inductive charging system. Many large gadget companies have standardized on Qi, which means it's easy to find a charging dish and Adafruit thought it might be cool if your Raspberry Pi project or cell phone with a microUSB port can recharge itself wirelessly. Thus, Adafruit now have four different MicroUSB Modules for different phone orientations.

This is the 60mm Forward version of Adafruit's different Qi MicroUSB Modules. We also have a 20mm Forward, 20mm Reverse, and a 60mm Reverse.

Check out the big photo above of the microUSB connector orientation to determine which module you need!

Adafruit have a generic photo showing how the module sticks to the back of Adafruit's Android phone, but you'll have to check the MicroUSB connector orientation to determine which length/type of Qi module you need.

These receivers only provide power on the USB's +5V and Ground pins. Some phones (like the Moto X) require a special voltage on the data lines, and won't charge. Check online documentation for your phone to see if you can get away with not having any voltages or connections on the data lines!

You do need a Qi transmitter to go along with the receivers - which Adafruit now carry in the Adafruit store.

Technical Details

Output Voltage: DC5V
Output Current: 600mA Max
Max Power Transmission: DC 5W
Operating Frequency: 100-200Khz
Conversion efficiency: >70%
Charging distance: 2-6mm
Weight Weight: 25g

As of Monday, April 27th, 2015 the cable length is 60mm.
