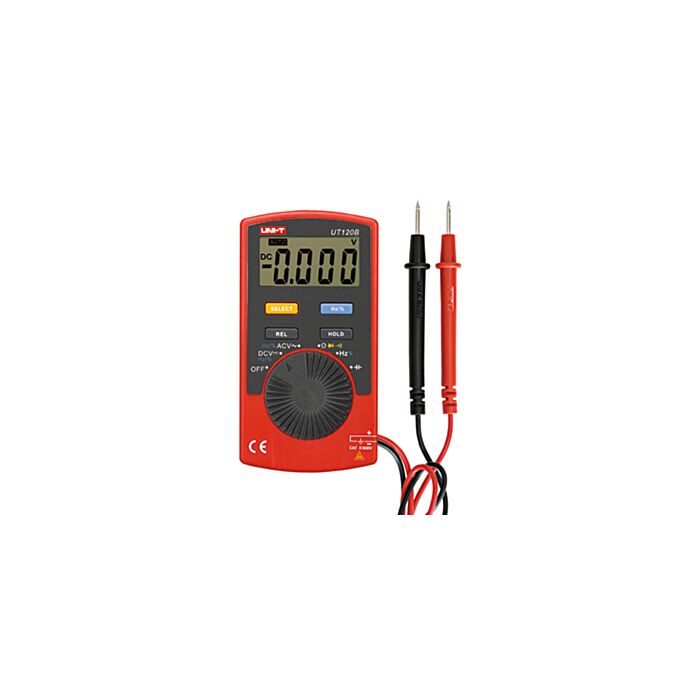

Uni-T Pocket Size Type Digital Multimeters

SKU: CE04615

$27.25 AUD, inc GST
$24.77 AUD, exc GST
Uni-T Pocket Size Type Digital Multimeters

SKU: CE04615

$27.25 AUD, inc GST
$24.77 AUD, exc GST

Retired Product

Replaced by: digital multimeter


  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This product has been replaced by: digital multimeter


SpecificationsRangeBest Accuracy
DC Voltage (V)4V/40V/400V/600V±(0.8%+3)
AC Voltage (V)4V/40V/400V/600V±(1.2%+3)
Resistance (Ω)400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ   ±(1%+2)
Capacitance (F)4nF/40nF/400nF/4μF/40μF/100μF±(4%+3)
Frequency (Hz)99.99Hz~99.99KHz±(0.5%+3)
Display Count 4000
Auto Range
Duty Cycle0.1%~99.9%
Auto Power OffAround 30 Minutes
Continuity Buzzer
Low Battery Indication≤2.4V
Data Hold
Relative Mode
Input Impedance for DCVAround 10MΩ
General Characteristic
Power3V Battery(CR2032)
LCD Size43mm X 22mm
Product ColorRed +Grey
Product Net Weight76g
Product Size110mm X 58.2mm X 10.8mm
Standard AccessoriesBattery,Carrying Case
Standard Individual Packing   Blister, English Manual
