Ultra Flexible 5V Natural White LED Strip - 320 LEDs per meter - 1 meter long - 4000K Color

SKU: ADA5851 Brand: Adafruit
Here at Adafruit, we love discovering new and exotic glowing things. Like moths to the flame, we were intrigued by these 'chip on board'...
$22.90 AUD, inc GST
$20.82 AUD, exc GST

Available with a lead time
Expect dispatch between Nov 28 and Dec 03

Quantity Discounts:

  • 10-25 $19.98 (exc GST)
  • 25+ $19.36 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

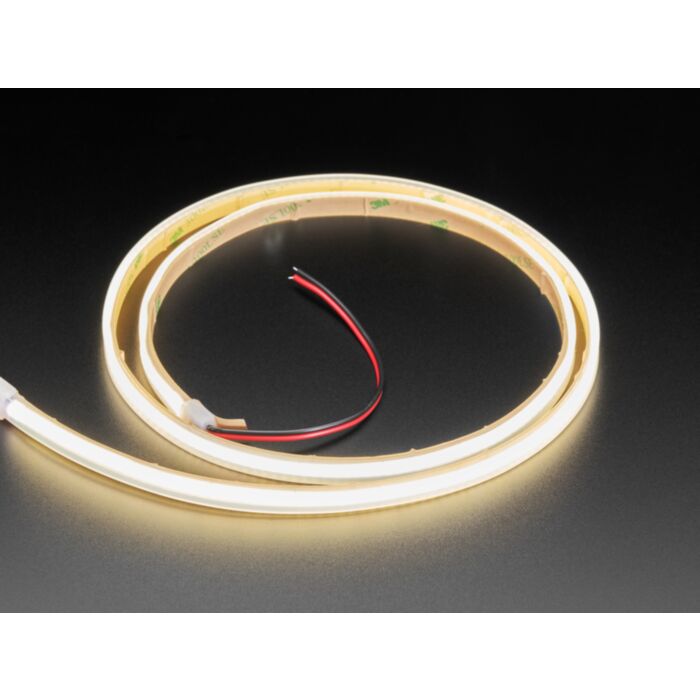

Here at Adafruit, Adafruit love discovering new and exotic glowing things. Like moths to the flame, Adafruit were intrigued by these 'chip on board' ultra-flexible white LED Strips with a whopping 320 SMT LEDs per meter, soldered side-by-side and diffused with a thin silicone epoxy! They look a lot like neon or incandescent tubing or maybe really nice EL wire, but without the need for expensive transformers, glass tubing, or inert gasses. The strip itself is only 5mm wide, the casing is 8mm wide but can be removed.

Unlike addressable neopixel-dot strips, these lights have a continuous, light source, and unlike Adafruit's 'Neon' tubing, they're much thinner and more flexible (but don't have a chunky diffused look) The trade-off for having a thin silicone cover and non-diffused tubing casing is that close up you can see the little hot spots between LEDs.

The silicone casing makes for a strong, durable, weather-proof casing. They're not guaranteed for dunking underwater or long-term outdoor exposure, but they're durable enough for outdoor projects like costumes, bike lighting, or festival decorations. Plus, with the adhesive backing, you can stick it where you please.

You'll get a 1-meter-long strip with two wires: black and red. Provide 3V at 220mA (bright) to 5V at 1.3A (very bright!), and the strip starts to glow.

This strip is powered from 5V, They also have similar white LED strips that are powered from 12V

Note these are not 'NeoPixel' LED strips; you cannot turn individual LEDs on or offThis guide on analog RGB LED strip control will show you how it works - you'll want a microcontroller with a PWM output and N-MOSFETs or a ULN2803 to control the power to the entire LED element.

Technical Details

RoHS 2 2011 65 EU CompliantRoHS 2 2015 863 EU Compliant

This product is listed in:

Components & Parts>LEDs>Non-addressable
