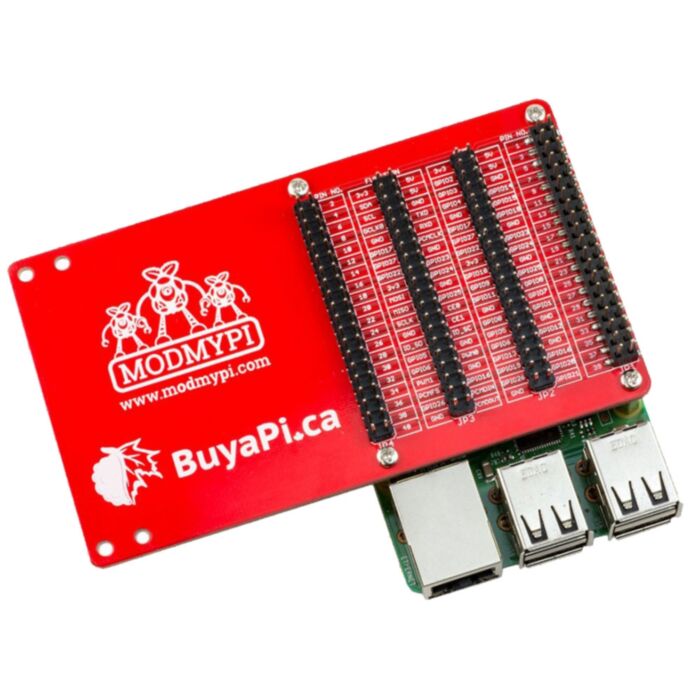

ModMyPi Triple GPIO Expansion Board w/ HAT Area

SKU: CE05843 Brand: ModMyPi
This triple GPIO multiplexing expansion plate is perfect for sharing GPIO pins between applications and circuits! It's often fiddly to combine multiple breakout boards onto the standard single Pi GPIO header, but with the expansion plate, it's a breeze.
$17.90 AUD, inc GST
$16.27 AUD, exc GST

Quantity Discounts:

  • 10-25 $15.62 (exc GST)
  • 25+ $15.14 (exc GST)

Out of Stock

Sign up to get notified when it's available to order.

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This triple GPIO multiplexing expansion plate is perfect for sharing GPIO pins between applications and circuits! It's often fiddly to combine multiple breakout boards onto the standard single Pi GPIO header, but with the expansion plate, it's a breeze. Simply plug the replicator board into your Pi and plug any additional circuits or breakout boards into additional headers! This board is fully assembled and comes with 3 x 40 Pin headers, so you'll have up to 4 x 40 Pin GPIO arrays to add "stuff" to your Raspberry Pi.

This board has a HAT mounting area, so you can mount two HATs on a single Raspberry Pi, and still have GPIO's to spare!

The product comes fully assembled with ModMyPi's push-fit "plug & play" Single Shroud Header, Socket Header, and 14mm HAT Mounting Kit, so there's no soldering required.

Specifications

  • Triple 40 Pin GPIO Header Multiplexor
  • HAT Compliant Layout
  • Uses SMT Socket Header & 40 Pin Extra Tall "Single Shroud" Header
  • Includes 14mm Mounting Kit
  • Fully Assembled - No Soldering Required
  • HAT Mounting Area
  • Stackable
  • Fully Labelled GPIO Silkscreen
  • 3 x 40 Pin Breakout Array (2 x 20) with pre-soldered Raspberry Pi header's
