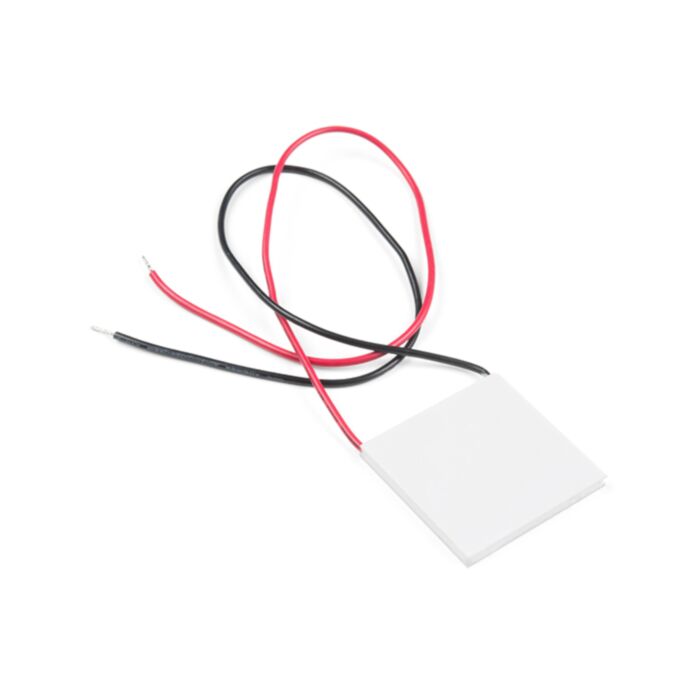

Thermoelectric Cooler

SKU: COM-15082 Brand: Sparkfun

Retired Product

Replaced by: FIT0797

This product has been replaced by: FIT0797
This product is no longer available. This page is only for reference.

Thermoelectric coolers (TEC or Peltier) create a temperature differential on each side. One side gets hot and the other side gets cool. Therefore, they can be used to either warm something up or cool something down, depending on which side you use. You can also take advantage of a temperature differential to generate electricity. The thermal tape listed below works very well to attach heat sinks to the hot side.

This Peltier works very well as long as you remove the heat from the hot side. After turning on the device, the hot side will heat quickly, the cold side will cool quickly. If you do not remove the heat from the hot side (with a heat sink or other device), the Peltier will quickly reach stasis and do nothing. Sparkfun recommend using an old computer CPU heatsink or other block of metal to pull heat from the hot side. Sparkfun were able to use a computer power supply and CPU heatsink to make the cold side so uncomfortable Sparkfun could not hold our finger to it.

Note: It is imperative that a heat sink is used on the hot side of the module. Running the module without one can cause damage to this part. If it’s too hot to comfortably touch, you’re in the danger zone!

Features

lmax - 7A
Umax - 15.4V
Qcmax - 62.2W
Tmax - 69C
1.7 Ohm resistance
127 thermocouples
Max Operating Temp: 180°C
Min Operating Temp: -50°C
Dimensions: 40mm x 40mm x 3.6mm

Documents

Learn about TECs (Tom’s Wiki)
Learn about thermoelectric effect (Wikipedia)
Example Arduino code to control a MOSFET for power
Datasheet
