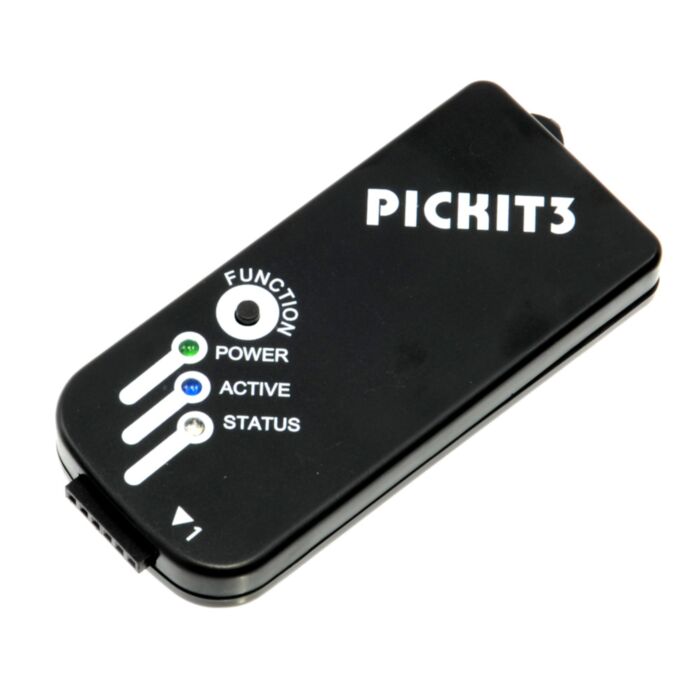

Sure Electronics Programmer (PICkit 3 Compatible)

SKU: 017-DB-DP11116

$34.88 AUD, inc GST
$31.71 AUD, exc GST

More Views

Sure Electronics Programmer (PICkit 3 Compatible)

SKU: 017-DB-DP11116

$34.88 AUD, inc GST
$31.71 AUD, exc GST
1 reviews 0 5 4

Retired Product

This product has been retired and kept here for reference.

This Sure Electronics Programmer is compatible with the Microchip® PICkit® 3 Programmer/Debugger. It is a simple low-cost in-circuit debugger that is controlled by a PC running MPLAB® IDE (v8.20 or greater) software on a Windows platform. The PICkit® 3 programmer/debugger is an integral part of the development engineer’s tool suite. The application usage can vary from software development to hardware integration.

This Programmer/Debugger is a debugger system used for hardware and software development of Microchip® PIC® microcontrollers (MCUs) and dsPIC® Digital Signal Controllers (DSCs) that are based on In-Circuit Serial Programming (ICSP) and Enhanced In-Circuit Serial Programming 2-wire serial interfaces.

The debugger system executes code like an actual device because it uses a device with built-in emulation circuitry, instead of a special debugger chip, for emulation. All available features of a given device are accessible interactively, and can be set and modified by the MPLAB® IDE interface.

Features:

  • Size: 93.50(L) × 39.80(W) × 12.90(H) ±0.2mm
  • Full-speed USB support using Windows standard drivers
  • Real-time execution
  • Processors run at maximum speeds
  • Built-in over-voltage/short circuit monitor
  • Low voltage to 5V (1.8 to 5V range)
  • Diagnostic LEDs (power, active, status)
  • Read/write program and data memory of microcontroller
  • Erase of all memory types (EEPROM, ID, configuration and program) with verification
  • Peripheral freeze at breakpoint

Applications:

  • Program and debug applications

Package Contents:

  • Programmer/Debugger x1
  • RJ11 to 6-pin flat cable x 1
  • 6-pin flat cables ×1
  • Mini USB print cable ×1
  • Free 6-pin header ×1
  • Free 6-pin housing ×1

"Microchip", "PICKit", "MPLAB" and "PIC" are registered trademarks of Microchip Technology Inc.

This product is listed in:

Documentation and Resources:
  • The Maker Revolution
  • The Maker Revolution celebrates the creation of new devices and the modification of existing ones - the transition from a consumer buying goods to eventually having a major part in their creation. The Maker Revolution places strong emphasis on free (...

Product Comments


Customer Reviews

  1. Review by Stuart - Good for Hex file loading verified purchaser
    Rating
    80

    As identified in the product description this clone works with MPLAB® IDE (v8.20 or greater). I have successfully used it with MPLAB® IDE v8.92 to upload Hex files to a PIC32MX150F128B. It is important to follow the sequence as identified by others, i.e.:
    (1) Start MPLAB
    (2) Configure -> Select Device
    (3) Configure -> Configuration Bits and check the box 'Configuration bits set in code'
    (4) Programmer -> "PICKIT 3", only then connect the PICKIT 3 to a USB port
    (5) File -> Import
    (6) Programmer -> Program
    There are YouTube videos of this device not working with MPLAB X so I would not recommend downloading this version. (Posted on 23/12/2014)
