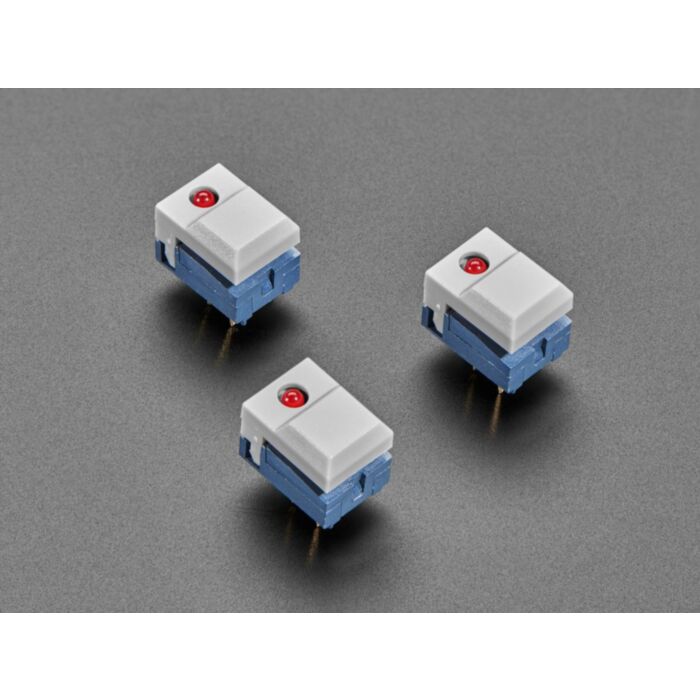

Step Switch with LED - Three Pack of Gray Plastic with Red LED - PB86-A1

SKU: ADA5498 Brand: Adafruit

These hinged step switches are evocative of the 16-step sequencer keys on TR-808 sythesizers. Also sometimes used on A/V equipment, they're very...

$8.70 AUD, inc GST

$7.91 AUD, exc GST

Available with a lead time
Expect dispatch between Nov 20 and Nov 25

Quantity Discounts:

10-25 $7.59 (exc GST)
25+ $7.35 (exc GST)

These hinged step switches are evocative of the 16-step sequencer keys on TR-808 sythesizers. Also sometimes used on A/V equipment, they're very tactile, with a good clicky feel. And of course, the built in red LED is great for indicating when something is on or off - or as visual feedback when clicked.

There's four legs to the switch for mechanical stability. The switch is momentary SPDT type, there are two pins of the four that act as the common, and they naturally connect to one or the other of the remaining pins when the button is pressed. Check the diagram below to see which pins are the pole and with are the two throws. You may also want to use a multimeter on continuity mode to verify.

The LED is a simple 3mm, 20mA max, 2.1V-forward-voltage, red LED embedded into the plastic. There is no resistor built in so a 1K or so resistor will be useful to keep the LED from burning out. Adafruit's LED guide will help you on how to pick a resistor - then you can PWM dim the LED from a microcontroller pin, or connect it to a digital output as desired.

Technical Details

Button dimensions: 17mm x 12mm x 14mm

Weight - 0.4

Diagram
