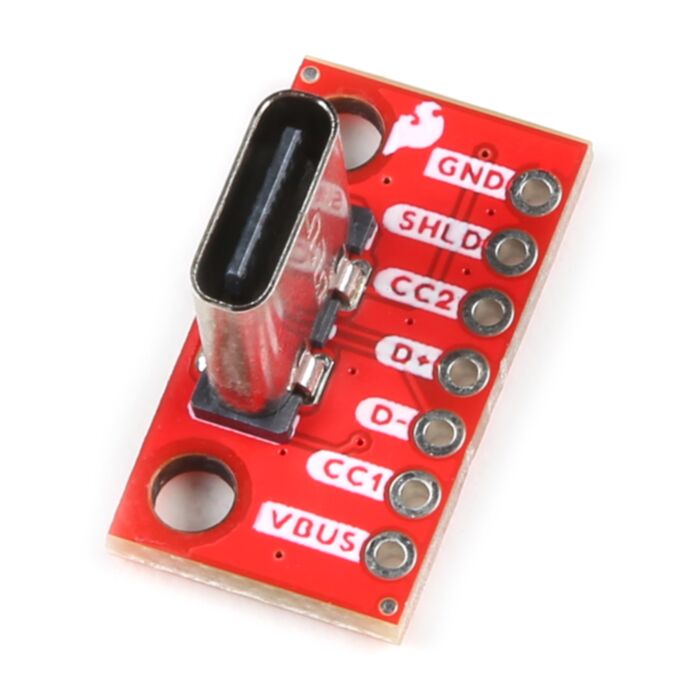

SparkFun USB-C Breakout - Vertical

SKU: BOB-23055 Brand: Sparkfun

With this USB-C breakout you will be able to incorporate a vertical USB-C connector into your projects without needing to solder each tiny SMD pad...

$8.40 AUD, inc GST

$7.64 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 31 and Jan 03

Quantity Discounts:

10-25 $7.33 (exc GST)
25+ $7.10 (exc GST)

With this USB-C breakout, you will be able to incorporate a vertical USB-C connector into your projects without needing to solder each tiny SMD pad. The vertical orientation of the USB-C connector also makes it convenient for panel mounts in projects.

The SparkFun USB-C Breakout supplies up to three times the power as our previous USB breakouts (i.e., Type-A, micro-B, and mini-B). Also, it solves the universally frustrating dilemma of plugging a USB cable in correctly because it's reversible! The board breaks out the USB-C connector's VBUS, GND, CC1, CC2, D+, D-, and SHLD pins into a 0.1" pitch header while providing up to a nominal 1.5A of power and up to 3A depending on the upstream device.

Features

Dimensions: 20.32mm x 11.43mm x 11.70mm (0.80in x 0.45in x 0.46in)
Weight: 1.6g
