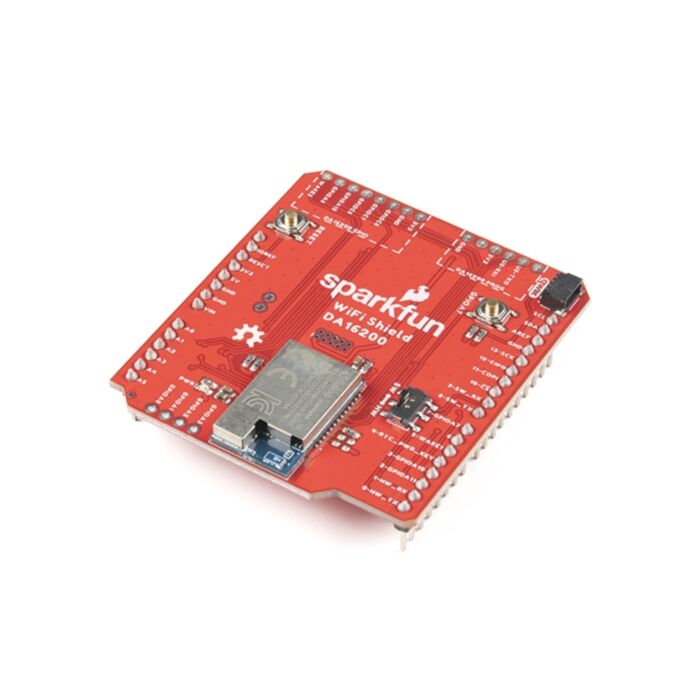

SparkFun Qwiic WiFi Shield - DA16200

SKU: WRL-18567 Brand: Sparkfun

SparkFun has teamed up with ARM and Dialog to provide you with this WiFi Shield based around the DA16200 module...

$34.80 AUD, inc GST

$31.64 AUD, exc GST

Available with a lead time
Expect dispatch between Feb 13 and Feb 17

Quantity Discounts:

10-25 $30.69 (exc GST)
25+ $30.05 (exc GST)

Ultra. Low. Power. Arguably the best three words in the IoT world. SparkFun has teamed up with ARM and Dialog to provide you with this Qwiic WiFi Shield based around the DA16200 module. The DA16200 is a fully integrated WiFi module with a 40MHz crystal oscillator, 32.768KHz RTC clock, RF Lumped RF filter, 4MB flash memory, and an on-board chip antenna. With the addition of a Qwiic connector, multiple GPIO options, JTAG connectors for deep dive programming, and you've got everything you need to get your R3 layout device ready to set up your next IoT project.

The SparkFun Qwiic WiFi Shield is ideal for door locks, thermostats, sensors, pet trackers, and other home IoT projects, thanks in part to the multiple sleep modes that allow you to take advantage of current draws as low as 0.2uA-3.5uA.

Additionally, the DA16200 module's certified WiFi alliance for IEEE802.11b/g/n, WiFi Direct, and WPS functionalities means that it has been approved for use by multiple countries and using the WiFi Alliance transfer policy, each WiFi Certification can be transferred without being tested again.

The SparkFun Qwiic Connect System is an ecosystem of I²C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can't hook it up wrong.

Get Started With the SparkFun DA16200 WiFi Shield Guide

Arm® Cortex®-M4F core w/ clock frequency of 30~160 MHz
WiFi processor
- IEEE 802.11b/g/n, 1x1, 20MHz channel bandwidth, 2.4GHz
- IEEE 802.11s Wi-Fi mesh
- WiFi security: WPA/WPA2-Enterprise/Personal, WPA2 SI, WPA3 SAE, and OWE
32 M-bit / 4 M-byte SPI flash Memory
2 UARTs
On-Chip RTC
Three ultra-low power sleep modes
Sleep current: 3.5uA
Operating voltage: 2.1V to 3.6V
Qwiic Connector for Arduino
