SparkFun Qwiic Mini ToF Imager - VL53L5CX

SKU: SEN-19013 Brand: Sparkfun

The SparkFun Qwiic Mini ToF Imager is built around VL53L5CX from ST Electronics; a state of the art, Time-of-Flight (ToF), multi zone ranging sensor...

$49.10 AUD, inc GST

$44.64 AUD, exc GST

Available with a lead time
Expect dispatch between Jun 26 and Jun 30

Quantity Discounts:

10+ $43.30 (exc GST)
25+ $42.40 (exc GST)

This equipment uses a laser and has the following restrictions:

the equipment is not intended for sale to the general public
the equipment is intended to be used in trades, professions or industries
the domestic or international prototype/product this equipment is to be used in will comply with relevant laws
the end-user of this equipment is licensed and trained to safely work with lasers

A declaration of use will need to be submitted during checkout.

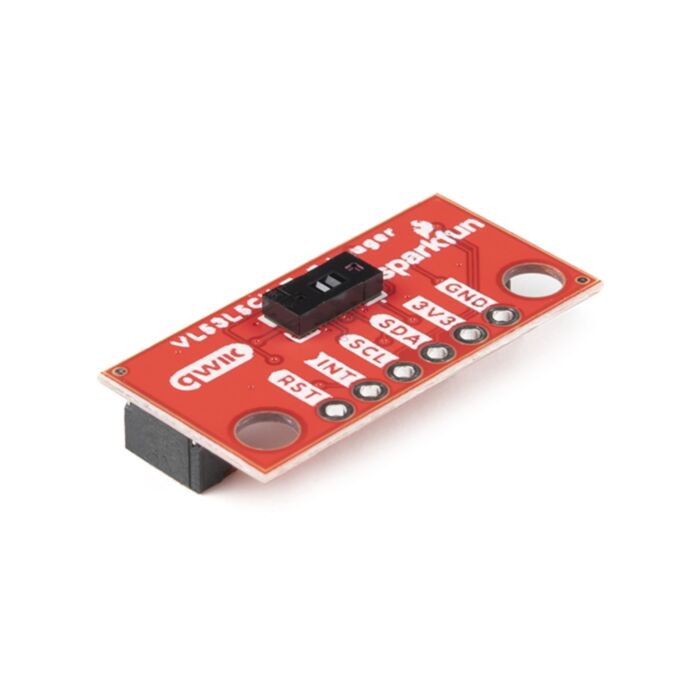

The SparkFun Qwiic Mini ToF Imager is a state of the art, 64 pixel Time-of-Flight (ToF) four meter ranging sensor built around the VL53L5CX from STMicroelectronics. This Mini version has a footprint that is half the size (0.5in. x 1in.) of our standard Qwiic VL53L5CX board. Additionally, Sparkfun moved the Qwiic connectors to the back of the board in a vertical orientation. These design changes favor mounting applications where the VL53L5CX sensor faces outward from an enclosure or chassis, and keeps your Qwiic cables cleanly tucked away.

The VL53L5CX chip integrates a SPAD array, physical infrared filters, and diffractive optical elements (DOE) to achieve the best ranging performance in various ambient lighting conditions with a range of cover glass materials. Utilizing our handy Qwiic system, no soldering is required to connect it to the rest of your system. However, Sparkfun still have broken out some 0.1in.-spaced pins in case you prefer to use a breadboard.

Multi zone distance measurements up to 4000mm are possible across all 64 zones with a wide 63° diagonal field-of-view which can be read up to 15Hz. Thanks to ST Histogram patented algorithms, the VL53L5CX is able to detect different objects within the FoV. The Histogram also provides immunity to cover glass crosstalk beyond 60cm.

The Qwiic Mini ToF Imager is ideal for 3D room mapping, obstacle detection for robotics, gesture recognition, IoT, laser-assisted autofocus, and AR/VR enhancement; the Qwiic connector on this sensor makes integration easy.

The SparkFun Qwiic Connect System is an ecosystem of I²C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can't hook it up wrong.

Get Started With the VL53L5CX Qwiic ToF Imager Hookup Guide

Multizone ranging output with either 4x4 or 8x8 separate zones
Autonomous Low-power mode with interrupt programmable threshold to wake up the host
Up to 400cm ranging
60Hz frame rate capability
Emitter: 940nm invisible light vertical cavity surface emitting laser (VCSEL) and integrated analog driver
63° diagonal square FoV using diffractive optical elements (DOE) on both transmitter and receiver
Operating Voltage: 3.3V
I²C Address: 0x52
2x Vertical Qwiic Connectors
Dimensions - 0.5in. x 1in.
