SparkFun Pi Wedge (Preassembled)

SKU: BOB-13717 Brand: Sparkfun Guides (1)

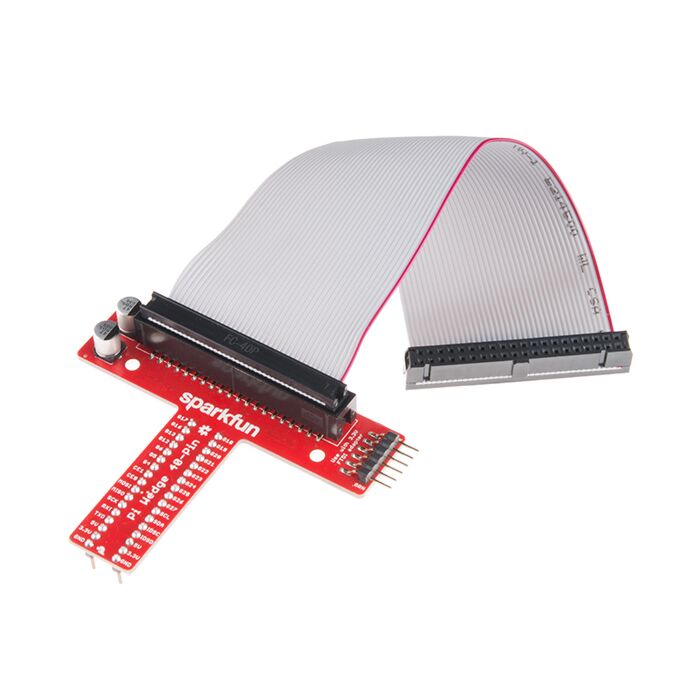

This is the SparkFun Pi Wedge, a small board that connects to the 40-pin GPIO connector on the Raspberry Pi and breaks the pins out to breadboard-friendly arrangement and spacing, and even adds a couple of decoupling capacitors on the power supply lines. The “Wedge” also makes the initial bring-up process easier - you can plug an FTDI Basic module into the built-in serial port. Each version of this Pi Wedge comes preassembled and can be inserted into the RPi’s GPIO port that allows you to prototype - no soldering required!

$26.95 AUD, inc GST

$24.50 AUD, exc GST

Available with a lead time
Expect dispatch between May 19 and May 20

Quantity Discounts:

10+ $23.76 (exc GST)
25+ $23.27 (exc GST)

The Pi Wedge is compatible with the Raspberry Pi A , B , or RPi2 models and it adapts the GPIO header on the RPi to a standard solderless breadboard, such as our medium, large, and extra largebreadboards. While it will technically with with a mini breadboard, it won’t leave much room for external circuitry. If you love the Raspberry Pi and have been looking to start prototyping with it look no further than the SparkFun Pi Wedge!

Includes:

1x Preassembled SparkFun Pi Wedge
1x GPIO Ribbon Cable (40-pin, 6")

Documents:

Schematic
Eagle Files
Hookup Guide
GitHub (Example Code & Design Files)
Product Video

Product Comments
