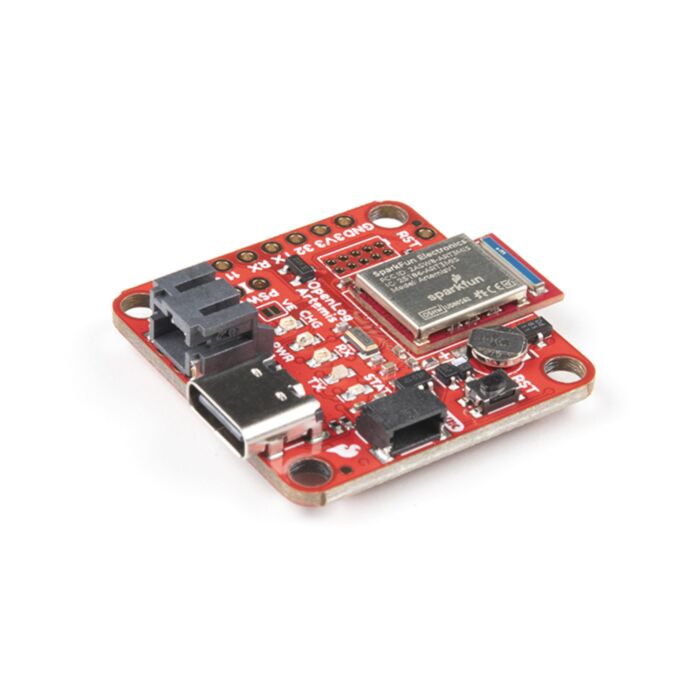

SparkFun OpenLog Artemis

Rating:

100% of 100

SKU: DEV-16832 Brand: Sparkfun

The SparkFun OpenLog Artemis is an open source data logger that comes preprogrammed to automatically log IMU, GPS, serial data, and various pressure, humidity, and...

$90.70 AUD, inc GST

$82.45 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Mon, 18th of Nov

Quantity Discounts:

6-12 $79.15 (exc GST)
12+ $76.68 (exc GST)

Restrictions apply to this equipment as it uses button/coin cell batteries:

The equipment is intended to be used in trades, professions or industries
The equipment is not intended for sale to the general public
The equipment is not intended to be used where children are present
You are aware that this equipment may not meet child safety testing requirements as it is not intended to be used by consumers or general public, but rather, is intended to be used in trades, professions or industries in conjunction with the limitations and restrictions listed above
You are aware that these restrictions are due to a change in A ustralian legislation in 2022 for button/coin cell batteries

Button Battery Warning

A declaration of use will need to be submitted during checkout.

The SparkFun OpenLog Artemis is an open source data logger that comes preprogrammed to automatically log IMU, GPS, serial data, and various pressure, humidity, and distance sensors. All without writing a single line of code! OpenLog Artemis, or "OLA," automatically detects, configures, and logs Qwiic sensors. The OLA is specifically designed for users who just need to capture a lot of data to a CSV and get back to their larger project.

Included on every OpenLog Artemis is an IMU for built-in logging of triple-axis accelerometer, gyro, and magnetometer. Whereas the original 9DOF Razor used the old MPU-9250, the OpenLog Artemis uses the latest ICM-20948 from InvenSense capable of nearly 250Hz logging of all nine axes. Simply power up the OpenLog Artemis and all incoming serial data is automatically recorded to a log file with baud rates up to 921600bps, supported! The OLA also has four ADC channels available on the edge of the board. Voltages up to 2V can be logged with 14-bit precision up to 1900Hz for one channel and 1000Hz logging all four channels. Additionally, based on feedback from users we've added an on-board RTC so that all data can be time stamped.

The OpenLog Artemis is highly configurable over an easy to use serial interface. Simply plug in a USB-C cable and open a terminal at 115200bps. The logging output is automatically streamed to both the terminal and the microSD. Pressing any key will open the configuration menu.

The OpenLog Artemis automatically scans, detects, configures, and logs various Qwiic sensors plugged into the board (No soldering! No programming!). Currently, auto-detection is supported on the following Qwiic products:

uBlox GPS Modules (Lat/Long, Altitude, Velocity, SIV, Time, Date):
- ZED-F9P 1cm High Precision GPS
- NEO-M8P-2 2.5cm High Precision GPS
- SAM-M8Q 1.5m 72 Channel GPS
- ZOE-M8Q 1.5m Compact GPS
- NEO-M9N 1.5m GPS
MCP9600 Thermocouple Amplifier
NAU7802 Load Cell Amplifier
LPS25HB Barometric Pressure Sensor
BME280 Humidity and Barometric Pressure Sensor
MS5637 Barometric Pressure Sensor
MS8607 Pressure Humidity Temperature Sensor
TMP117 High Precision Temperature Sensor
AHT20 Humidity and Temperature Sensor
SHTC3 Humidity and Temperature Sensor
CCS811 Air Quality Sensor
SGP30 Air Quality Sensor
SCD30 CO₂ and Air Quality Sensor
VEML6075 UV Sensor
VCNL4040 Proximity Sensor
VL53L1X LIDAR Distance Sensor
ADS122C04 ADC PT100 Sensor
Qwiic Mux allowing for the chaining of up to 64 unique buses!
More boards are being added all the time!

This OpenLog uses common microSD cards to record clear text, comma separated files. You probably already have a microSD card laying around but if you need any additional units see the related items below. The OpenLog Artemis supports microSD cards formatted as FAT32 as well as the older FAT16 formats up to 32GB. Currently, the OpenLog Artemis does not support microSD cards formatted with exFAT but Sparkfun plan to offer support for it in the future

Very low power logging is supported. OpenLog Artemis can be configured to take readings at 500 times a second, or as slow as 1 reading every 24 hours. You choose! When there is more than 2 seconds between readings OLA will automatically power down itself and the sensors on the bus resulting in a sleep current of approximately 18uA. This means a normal 2Ah battery will enable logging for more than 4,000 days! OpenLog Artemis has built-in LiPo charging set at 450mA/hr.

New features are constantly being added so we’ve released an easy to use firmware upgrade tool. No need to install Arduino or a bunch of libraries, simply open the Artemis Firmware Upload GUI, load the latest OLA firmware, and add features to OpenLog Artemis as they come out!

The OLA can be tailored to many different applications and Sparkfun will be releasing custom versions of the firmware which can be found on our Documents tab above.

The SparkFun Qwiic connect system is an ecosystem of I²C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can’t hook it up wrong.

Get Started with the SparkFun OpenLog Artemis Hookup Guide

Features

Artemis Module (Cortex-M4F based Apollo3 microcontroller)
- Configurable via CH340E and Artemis Firmware Upload GUI
Operating voltage range
- 3.3V to 6.5V (via VIN with optional external power switch)
  - 5V with USB (via 5V or USB type C)
  - 3.6V to 4.2V with LiPo battery (via VBATT or 2-pin JST)
    - Built-in MCP73831 single cell LiPo charger
    - Minimum 450mA charge rate
  - 3.3V (via 3V3)
Current consumption
- ~20mA (Run)
- ~80µA (Sleep)
- ~18µA (Deep Sleep - regulator shut down)
Ports
- 1x USB type C
- 1x LiPo battery enabled
- 1x Qwiic enabled I²C with power control
- 1x SWD 2x5 header
- 4x Analog-to-digital
  - 14-bit, up to 1900Hz, 2V max (3.3V compatible)
- Serial
  - Logging speeds up to 500000bps ^[1]
- 1x microSD socket
  - Support for FAT32 and older FAT16 formats up to 32GB with power control
RTC with 1mAhr battery backup
9-axis IMU logging up to 250Hz
- ICM-20948 via SPI interface
LEDs
- Power
- LiPo charge indicator
- Serial Tx and Rx
- Status

Documents

Schematic
Eagle Files
Hookup Guide
Board Dimensions
Datasheet (Apollo3)
Datasheet (ICM-20948)
Artemis Integration Guide
Designing with the SparkFun Artemis
Artemis Development with Arduino
Arduino Core
Artemis Forums
Artemis Info Page
Qwiic Info Page
Artemis Firmware Uploader GUI
- Latest OLA firmware: v1.5
- Geophone Logger firmware for logging seismic activity
- GNSS Logger for advanced data logging with the uBlox F9 and M9 GNSS modules including support for RAWX and RELPOSNED
GitHub Hardware Repo
