SparkFun MOSFET Power Control Kit (Assembled)

SKU: COM-14114 Brand: Sparkfun

Retired Product

Replaced by: CE09733

This product has been replaced by: CE09733
This product is no longer available. This page is only for reference.

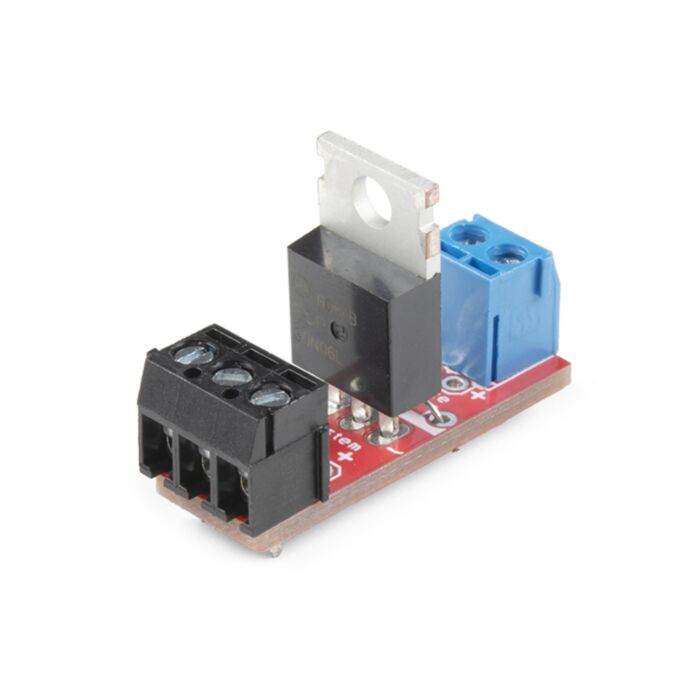

This is an assembled version of the SparkFun MOSFET Power Control Kit, a breakout PTH soldering kit for for the RFP30N06LE N-Channel MOSFET. This kit comes pre-assembled with everything already soldered onto the PCB. If you are looking for a little more control over projects that require a little more power than normal but need a better way than your breadboard, this kit is perfect for you.

This kit is comprised of a SparkFun MOSFET Power Control PCB, two screw terminals (one 2-pin and one 3-pin), a 10k resistor, and a single RFP30N06LE MOSFET. What Sparkfun really like about this particular MOSFET is that it's very common and offers very low on-resistance with a control (gate) voltage that is compatible with any 3-5V microcontroller or mechanical switch. This allows you to control high-power devices with very low-power control mechanisms.

Note: While the MOSFET is rated to 60V 30A, the circuit board traces are only rated to 3.5A.

Features

Pre-soldered and fully assembled!
Rated: 60V, 30A (PCB only rated for 3.5A)
2kV ESD Protected
Temperature Compensating PSPICE Model
Peak Current vs Pulse Width Curve

Documents

Schematic
Eagle Files
Datasheet (RFP30N06LE)
GitHub (Design Files)
