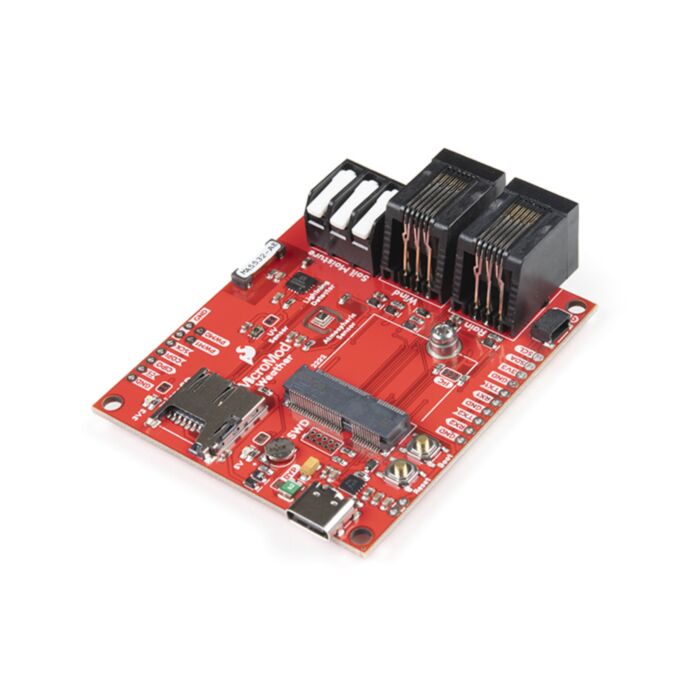

SparkFun MicroMod Weather Carrier Board

SKU: SEN-16794 Brand: Sparkfun

Retired Product

Search for an alternative

This product has been retired. It is no longer available, but this page has been kept for reference.

The MicroMod Weather Carrier Board is a periphery for the MicroMod ecosystem that allows you to create your own weather station with one of a multitude of processors. The carrier board includes three sensors: the BME280 temperature, pressure and humidity sensor, the VEML6075 UV sensor and the AS3935 Lightning detector.

Along with these on-board sensors there is a 3-pin latch terminal to add an external soil moisture sensor as well as a pair RJ11 jacks to plug in the wind and rain sensors included with our Weather Meter Kit. To top it all off there is a microSD card slot so you can plug in an SD card to log all of that glorious weather data using the MicroMod processor of your choosing!

MicroMod is a modular interface ecosystem that connects a microcontroller “processor board” to various “carrier board” peripherals. Utilizing the M.2 standard, the MicroMod standard is designed to easily swap out processors on the fly. Pair a specialized carrier board for the project you need with your choice of compatible processor!

Get Started with the MicroMod Weather Carrier Board Guide

Features

Barometric Pressure/Humidity/Temperature Sensor - BME280
- Operated in I²C mode. I²C address: 0x77
UV Light Sensor - VEML6075
- I²C address: 0x10
Lightning Detector - AS3935
- Operated in SPI mode.
2 x RJ11 Connectors to connect Wind/Rain sensors.
3-pin Latch Terminal to connect Soil Moisture sensor.

Documents

MicroMod Weather Carrier Board Documentation:

Weather Carrier Board Sensor Arduino Libraries:

MicroMod Documentation:
